S-21292-C
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: S-21292-C
Category: Tapered Roller Thrust Bearings
1

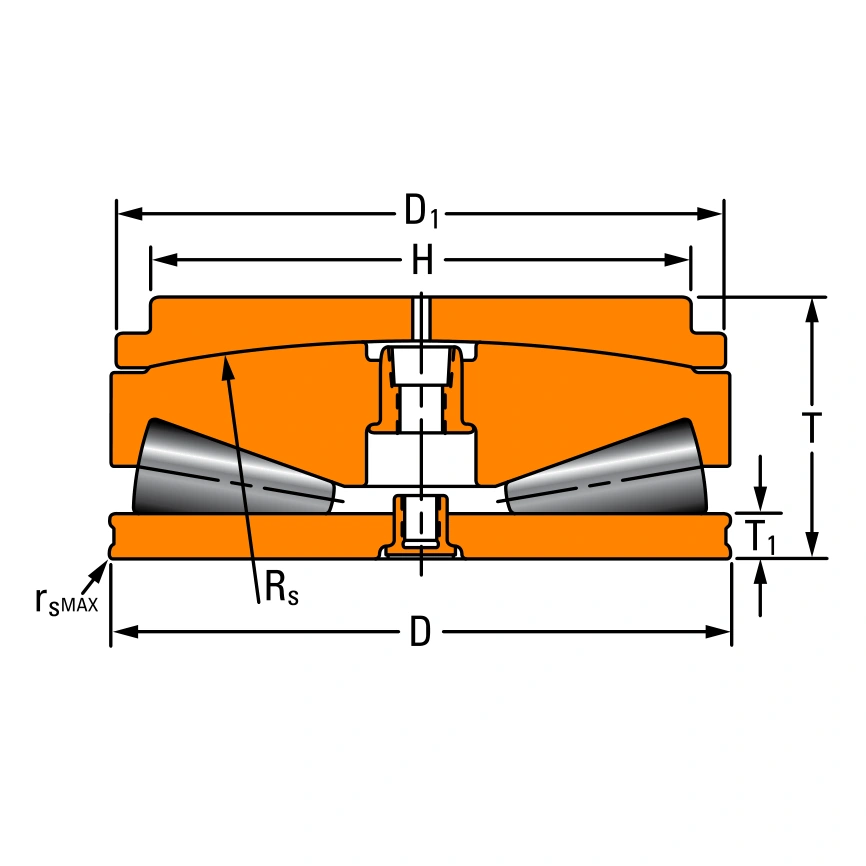

Weight and Dimensions
Large O.D.D: 609.6 mm 24 in
Small O.D.D1 (mm): 710.006 mm 27.953 in
Bearing Width (T): 253.66 mm 9.9866 in
Flat Race Width (T1): 38.037 mm 1.4975 in
Contact Diameter (H): 585 mm 23.0315 in
Spherical Radius (Rs): 1524 mm 60 in
Weight: 494 kg 1088 lbs
Data from Timken (medias)
Static Load Rating CaO: 48930 KN 11000000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN S-21292-C screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a spherical seating surface and a specialized stepped configuration designed for rolling mill screwdown mechanisms. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the spherical seating design helps accommodate minor mounting misalignment and maintain reliable load distribution. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market, where dependable axial support and durability are essential.
