SL192340-TB-BR
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: SL192340-TB-BR
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 200 mm
Outer (D): 420 mm
Width (B): 138 mm
Weight: 92.1 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 2470000 N
Basic Static Load Rating, Radial (C0r): 3300000 N
Fatigue Load Limit, Radial (Cur): 345000 N
Limiting Speed (nG): 1020 rpm
Reference Speed (nϑr): 570 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

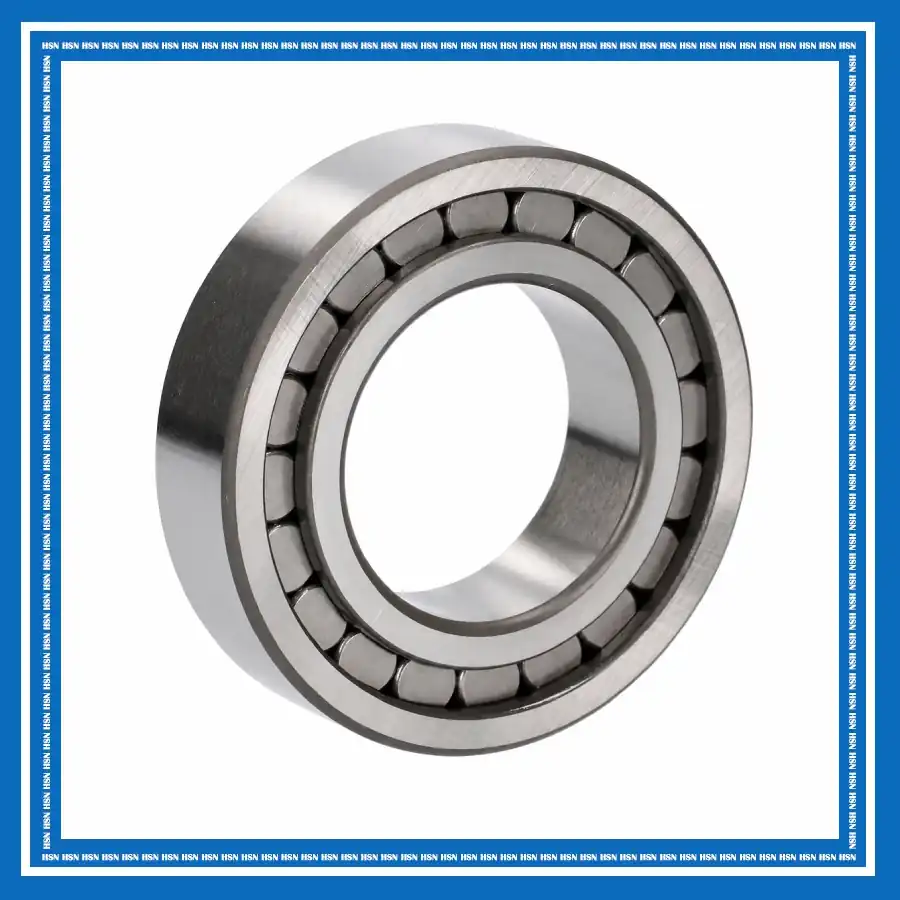

The SL192340-TB-BR FAG single row full complement cylindrical roller bearing consists of an inner ring, outer ring, and a full complement of cylindrical rollers without a cage. The full complement design provides very high radial load capacity and high rigidity. Meanwhile, the TB design optimizes roller-to-rib contact, improving axial load capacity and reducing friction under axial loads.
The SL192340-TB-BR bearing is suitable for steel processing machinery, heavy-duty reducers, large material handling equipment, and industrial production lines. Its very high radial load capacity, high rigidity, and optimized rib contact provide reliable support under heavy and continuous loads, making it suitable for demanding industrial operation.
