T114
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T114
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 25.654 mm 1.01 in
Outer Diameter (D): 55.562 mm 2.1875 in
Width (T): 15.875 mm 0.625 in
Max fillet: 0.8 mm 0.03 in
Data from Timken (medias)
Steering Pivot Rating : 20000 N 4500 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

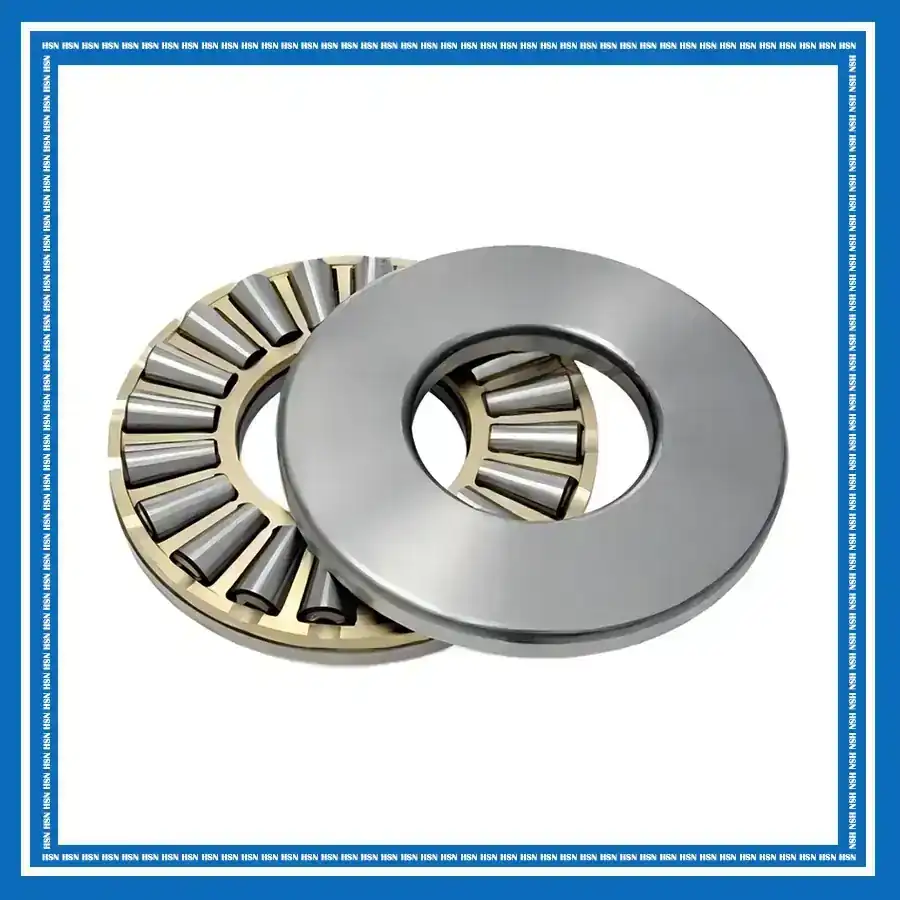

The TIMKEN T114 tapered roller thrust bearing consists of two tapered thrust races, tapered rollers, a finger-type cage, and a stamped steel retaining ring. Its compact construction provides stable axial load support, while the cage ensures consistent roller guidance during operation. The bearing features two bore diameters, 25.654 mm and 28.829 mm, with the T114W version incorporating oil holes in the retaining ring to facilitate lubrication. It is suitable for applications in the United States automotive and industrial markets, including automotive steering pivots and industrial steering mechanisms requiring reliable axial support.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
