T1380
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T1380
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 35.179 mm 1.385 in
Outer Diameter (D): 59.4 mm 2.3386 in
Width (T): 15.875 mm 0.625 in
Max fillet: 0.8 mm 0.03 in
Weight: 0.4 kg 0.8 lbs
Data from Timken (medias)
Steering Pivot Rating : 31200 N 7000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

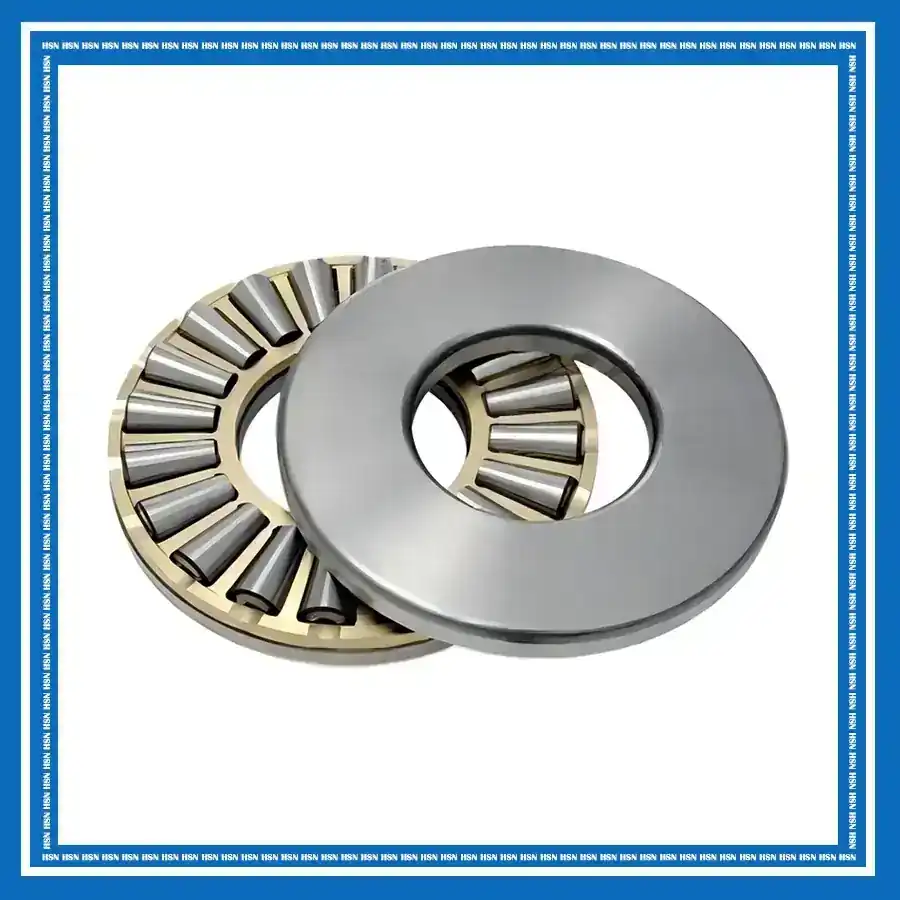

The TIMKEN T1380 tapered roller thrust bearing features a two-piece seal design and tapered rollers to provide reliable axial load support. Its sealing arrangement helps protect the bearing from external contaminants, while the robust construction supports stable performance under demanding operating conditions. The bearing is designed for applications requiring dependable thrust load support in the United States industrial market.
