T149W
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T149W
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 38.303 mm 1.508 in
Outer Diameter (D): 65.883 mm 2.5938 in
Width (T): 19.431 mm 0.765 in
Max fillet: 0.8 mm 0.03 in
Weight: 0.2 kg 0.5 lbs
Data from Timken (medias)
Steering Pivot Rating : 23600 N 5300 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

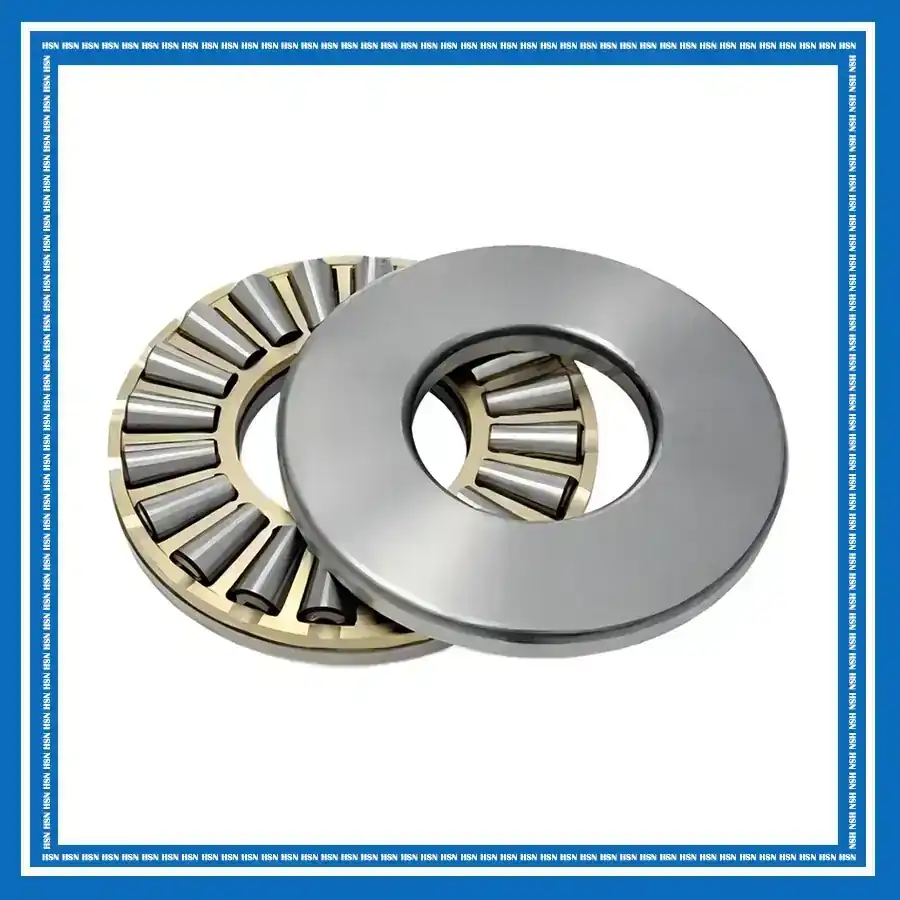

The TIMKEN T149W tapered roller thrust bearing consists of two tapered thrust races, tapered rollers, a finger-type cage guided by the small ends of the rollers, and a stamped steel retaining ring with oil holes. Its compact design provides reliable axial load support, while the cage maintains stable roller guidance during oscillating operation. The oil holes facilitate lubrication, and the retaining ring keeps the bearing components together for convenient installation and handling. It is suitable for applications in the United States automotive and industrial markets, including automotive steering pivots and industrial steering assemblies requiring dependable axial support.
