T311-T311S
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T311-T311S
Category: Tapered Roller Thrust Bearings
1

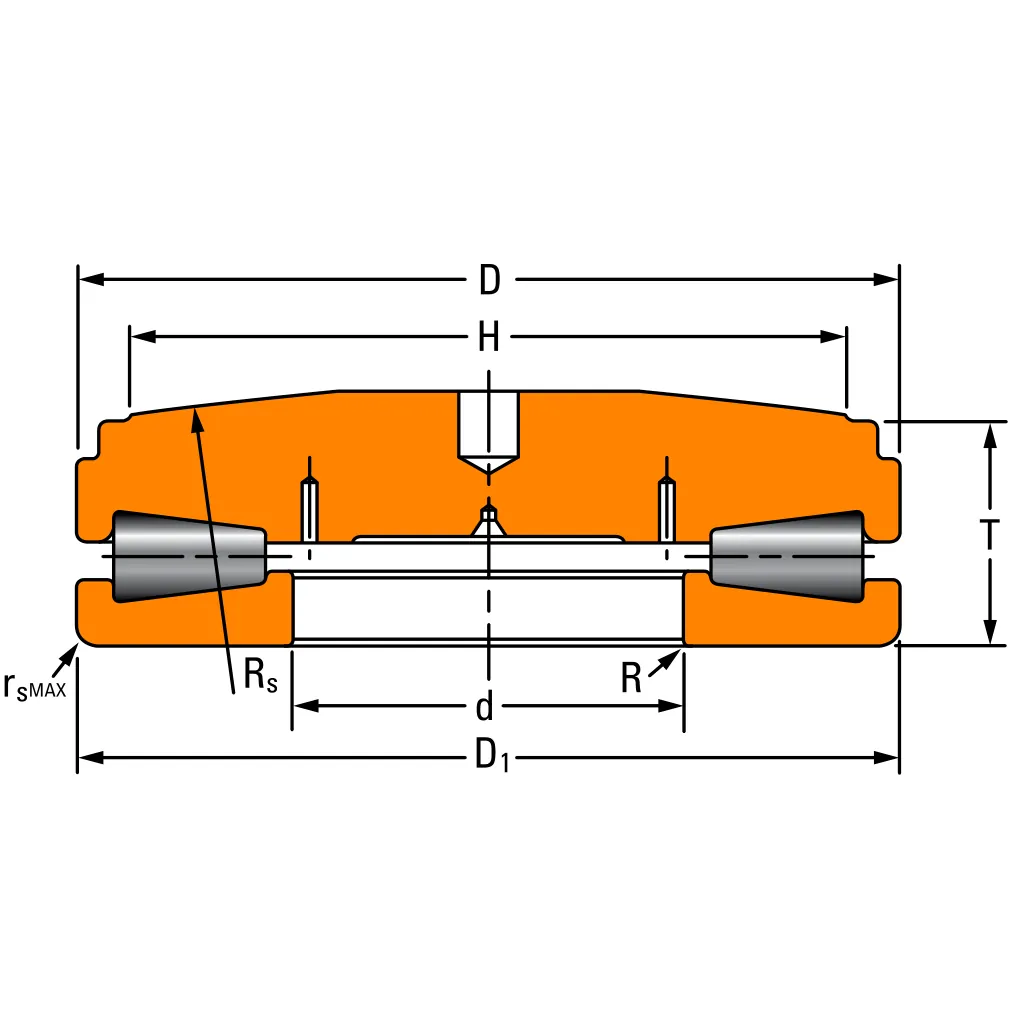

Weight and Dimensions
Bore (d): 76.200 mm 76.200 in
Large O.D.D: 161.925 mm 6.3750 in
Small O.D.D1 (mm): 161.925 mm 6.3750 in
Bearing Width (T): 49.213 mm 1.9375 in
Contact Diameter (H): 127.000 mm 5.0000 in
Spherical Radius (Rs): 457.2 mm 18 in
Fillet (R): 3.3 mm 0.13 in
Weight: 6.6 kg 14.5 lbs
Data from Timken (medias)
Static Load Rating CaO: 2330 KN 524000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN T311-T311S screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a spherical seating surface designed to accommodate the mounting requirements of rolling mill screwdown mechanisms. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the spherical seating design helps accommodate minor mounting misalignment and distribute axial forces effectively. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market**, where reliable axial support and durability are essential.
