T511FS-T511SB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T511FS-T511SB
Category: Tapered Roller Thrust Bearings
1

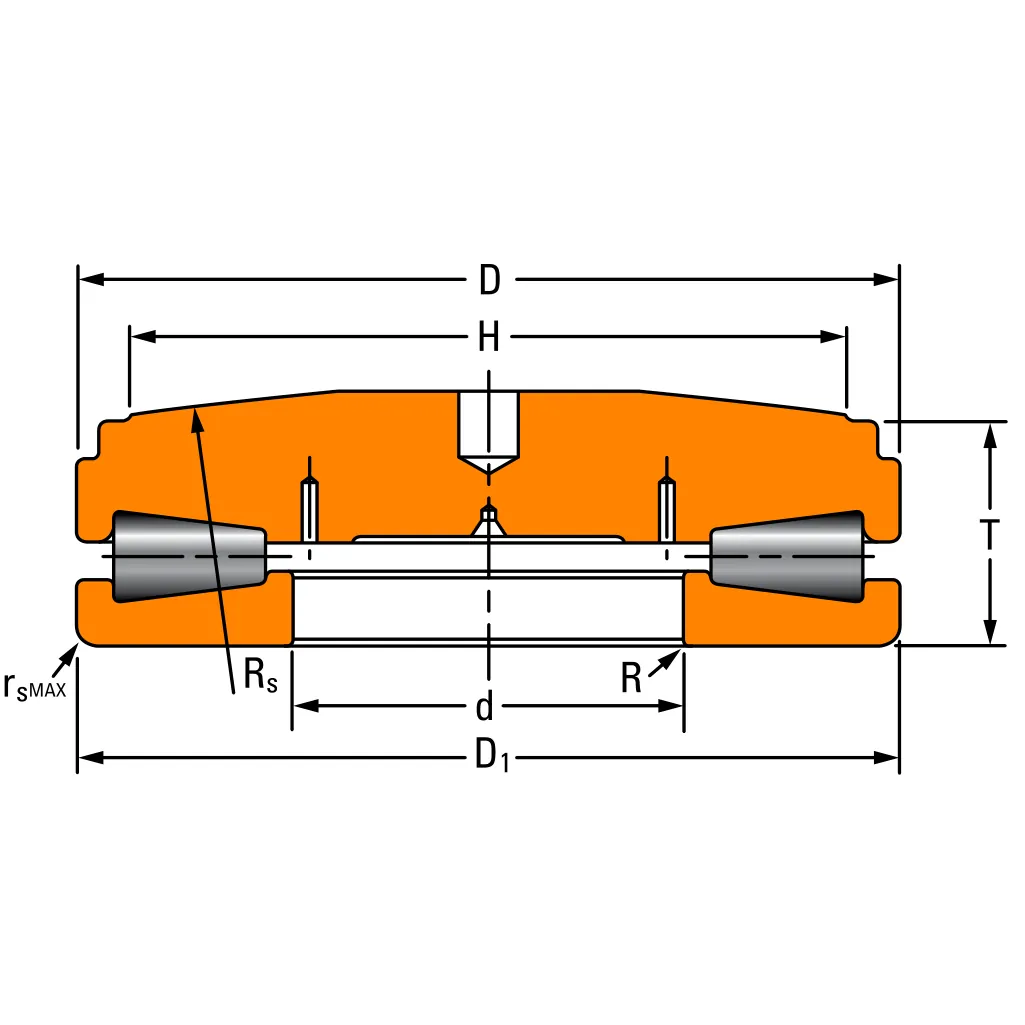

Weight and Dimensions
Bore (d): 112.700 mm 112.700 in
Large O.D.D: 266.700 mm 10.5000 in
Small O.D.D1 (mm): 266.700 mm 10.5000 in
Bearing Width (T): 79.375 mm 3.1250 in
Contact Diameter (H): 215.900 mm 8.5000 in
Spherical Radius (Rs): 609.6 mm 24 in
Fillet (R): 4.8 mm 0.19 in
Weight: 17.8 kg 39.2 lbs
Data from Timken (medias)
Static Load Rating CaO: 6050 KN 1360000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN T511FS-T511SB screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a spherical seating surface designed to accommodate the mounting requirements of rolling mill screwdown mechanisms. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the spherical seating design helps accommodate minor mounting misalignment and distribute axial forces effectively. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market**, where reliable axial support and durability are essential.
