Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T811FS-T811SA
Category: Tapered Roller Thrust Bearings
1

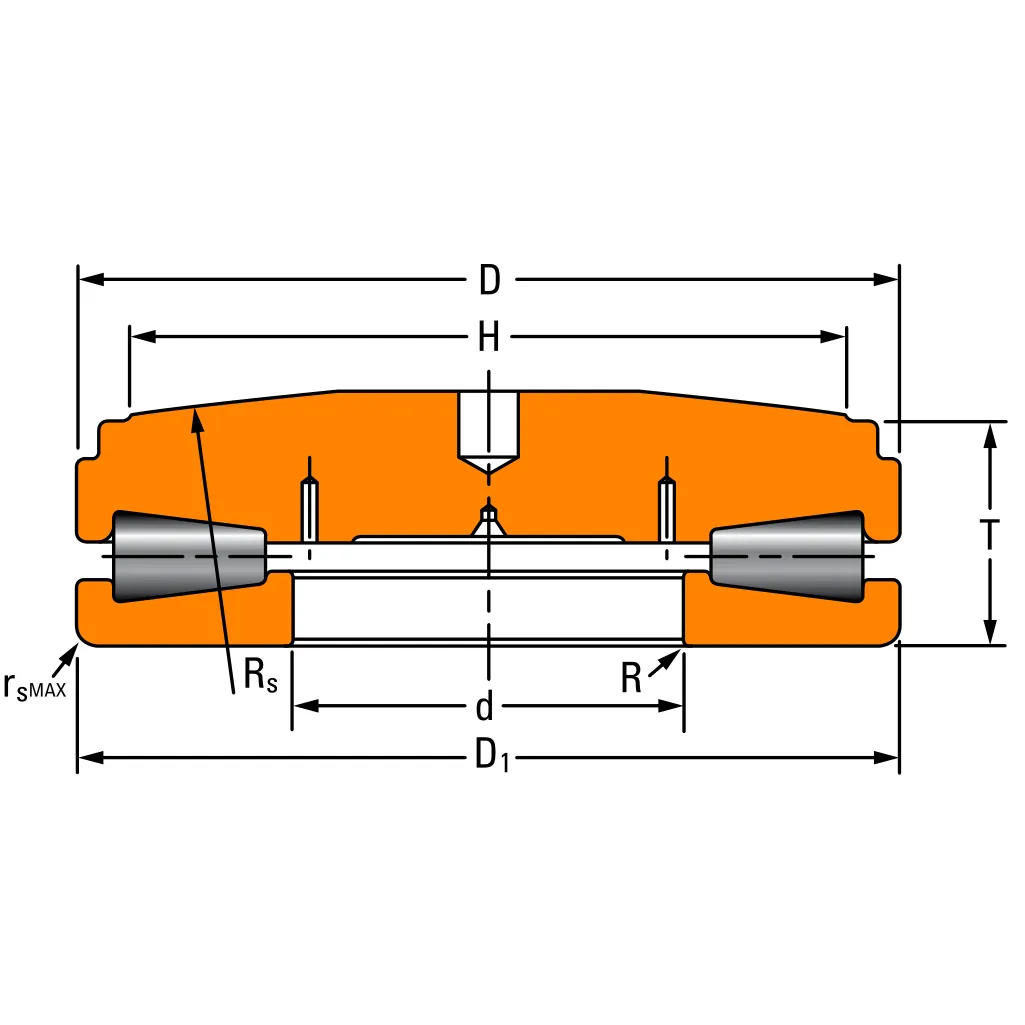

Weight and Dimensions
Bore (d): 203.200 mm 203.200 in
Large O.D.D: 422.275 mm 16.6250 in
Small O.D.D1 (mm): 419.100 mm 16.5000 in
Bearing Width (T): 115.888 mm 4.5625 in
Contact Diameter (H): 342.900 mm 13.5000 in
Spherical Radius (Rs): 838.2 mm 33 in
Fillet (R): 9.7 mm 0.38 in
Weight: 106.3 kg 234.3 lbs
Data from Timken (medias)
Static Load Rating CaO: 15080 KN 3390000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN T811FS-T811SA screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a spherical seating surface designed to accommodate the mounting requirements of rolling mill screwdown mechanisms. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the spherical seating design helps accommodate minor mounting misalignment and distribute axial forces effectively. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market**, where reliable axial support and durability are essential.
