T9030FSA-T9030SA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: T9030FSA-T9030SA
Category: Tapered Roller Thrust Bearings
1

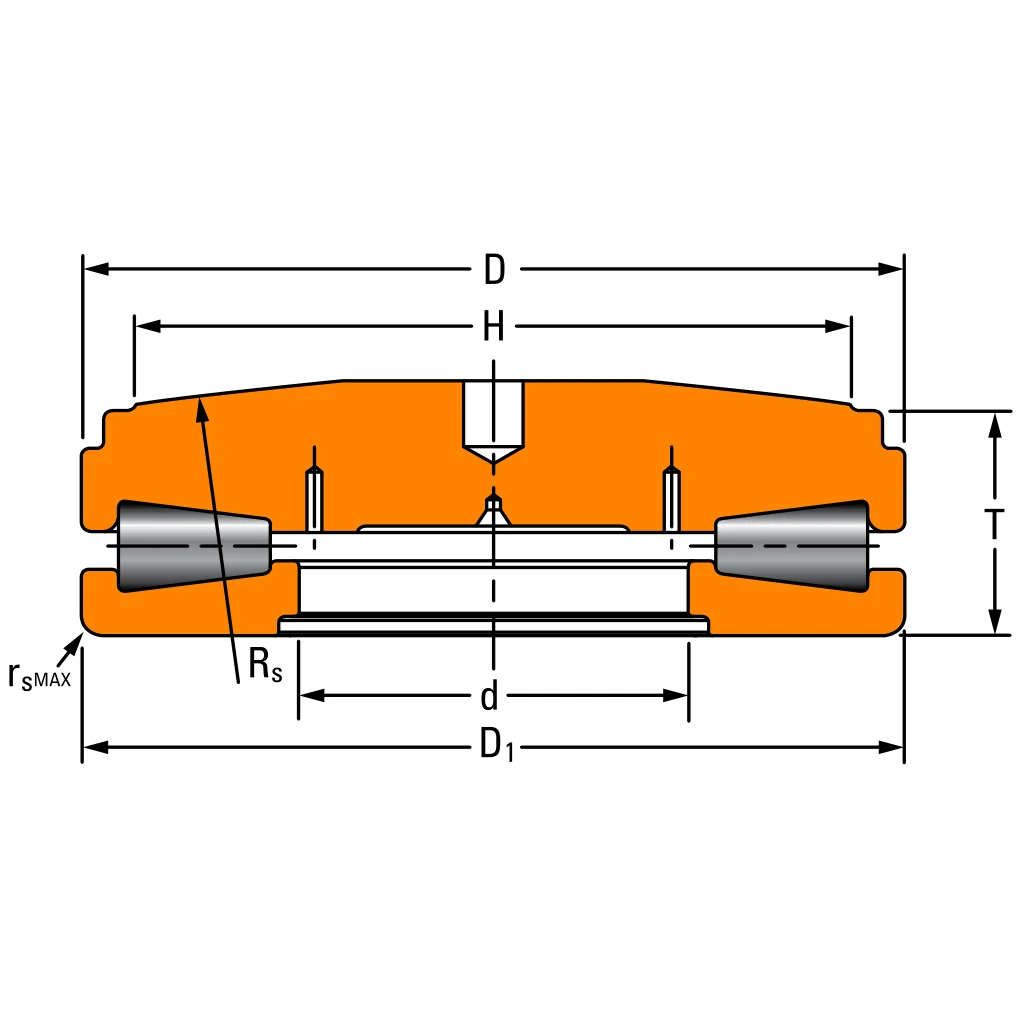

Weight and Dimensions
Bore (d): 168.275 mm 168.275 in
Large O.D.D: 482.600 mm 19.0000 in
Small O.D.D1 (mm): 482.600 mm 19.0000 in
Bearing Width (T): 131.763 mm 5.1875 in
Contact Diameter (H): 419.100 mm 16.5000 in
Spherical Radius (Rs): 1295.4 mm 51 in
Weight: 170.2 kg 375.2 lbs
Data from Timken (medias)
Static Load Rating CaO: 20640 KN 4640000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN T9030FSA-T9030SA screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a spherical seating surface designed for rolling mill screwdown mechanisms. Its heavy-duty construction provides high axial load capacity and stable support under extreme thrust loads, while the spherical seating design helps accommodate minor mounting misalignment and maintain reliable load distribution. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market, where dependable axial support and durability are essential.
