TP771
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ RBC/ OEM
Bearing Number: TP771
Category: Cylindrical Roller Thrust Bearings
1
Weight and Dimensions
Bore (B): 508 mm 20 in
Outer Diameter (D): 812.8 mm 32 in
Height (H): 152.4 mm 6 in
Data from RBC (medias)
Dynamic Capacity (Ca) : 7165 KN 1610756 lbf
Static Capacity (Coa) : 37360 KN 8398861 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
RBC Thrust Roller Bearings Guide
Product Description

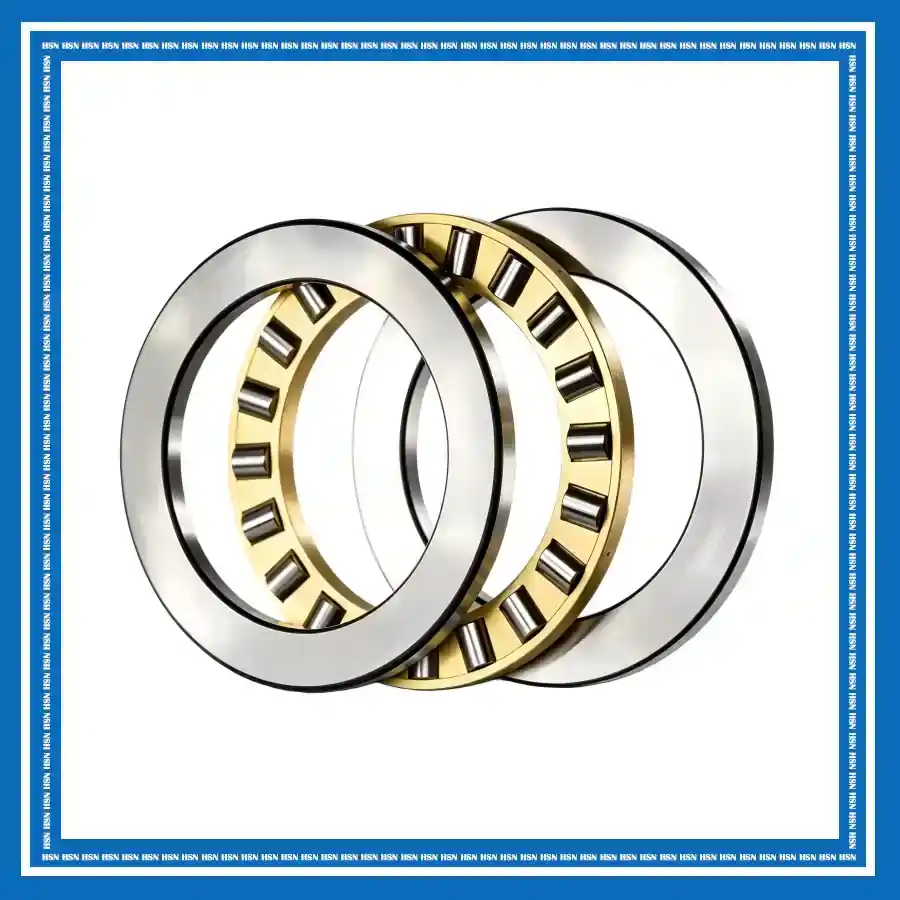

The RBC TP771 cylindrical roller thrust bearing consists of two hardened and precision-ground thrust washers, a machined brass cage, and hardened steel cylindrical rollers. Its robust roller design provides high axial load capacity and rigidity, while the precision-ground washers and brass cage support stable roller guidance and reliable operation under heavy thrust loads at moderate speeds. The fully separable construction facilitates installation, inspection, and maintenance. It is suitable for demanding applications in the United States industrial market, including crane hooks, gearboxes, pumps, rolling mills, extruders, winch systems, and heavy-duty swivels requiring reliable axial support.
