TP81168
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: TP81168
Category: Cylindrical Roller Thrust Bearings
1
Weight and Dimensions
Bore (B): 340 mm 13.3858 in
Outer (D): 420 mm 16.5354 in
Height (H): 65 mm 2.5591 in
Weight: 20 kg 43 lbs
Data from ARB (medias)
Dynamic Capacity (Ca) : 890 KN 200100 lbs
Static Capacity (C0a): 5000 KN 1124100 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Thrust Bearings Guide
Product Description

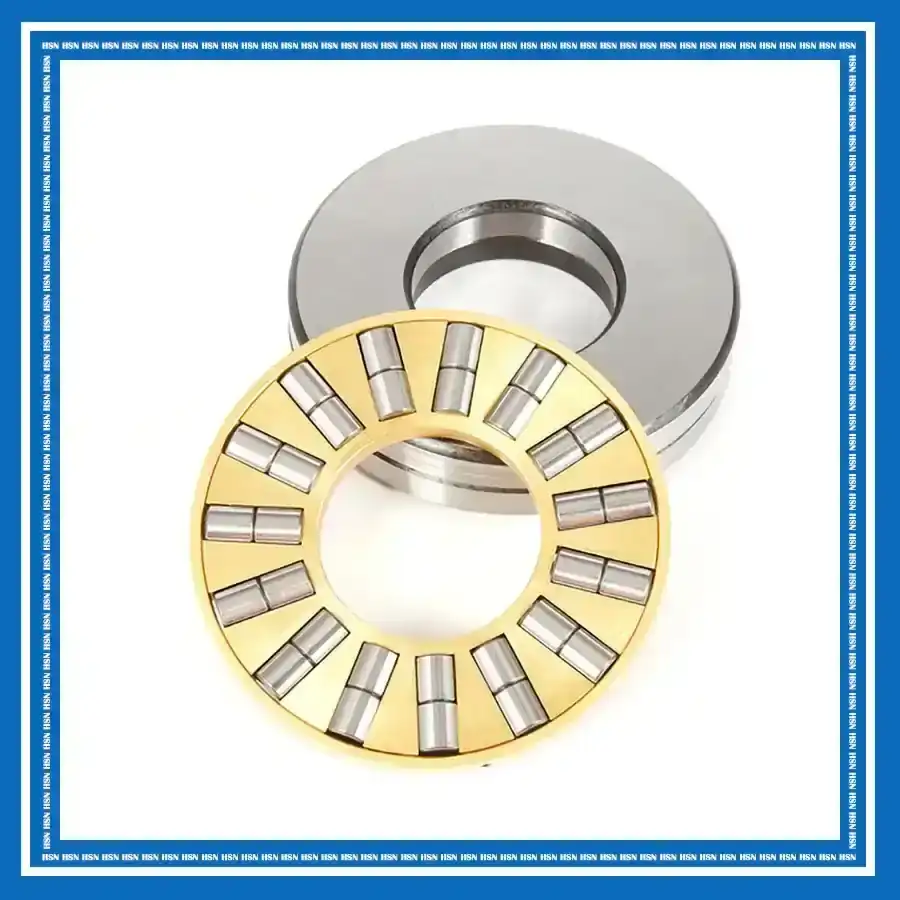

The ARB TP81168 cylindrical roller thrust bearing consists of precision-ground thrust plates, cylindrical rollers, a machined brass cage, and a retaining band that securely guides and retains the rollers. The cylindrical roller design provides a large contact area with the raceways, delivering high thrust load capacity, axial rigidity, and reliable performance under heavy loads. It is suitable for extruders, screw presses, rock crushers, coal pulverizers, lathe tailstocks, oilfield equipment, and other heavy-duty machinery requiring reliable axial support.
