Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: VVFT8050
Category: Tapered Roller Thrust Bearings
1

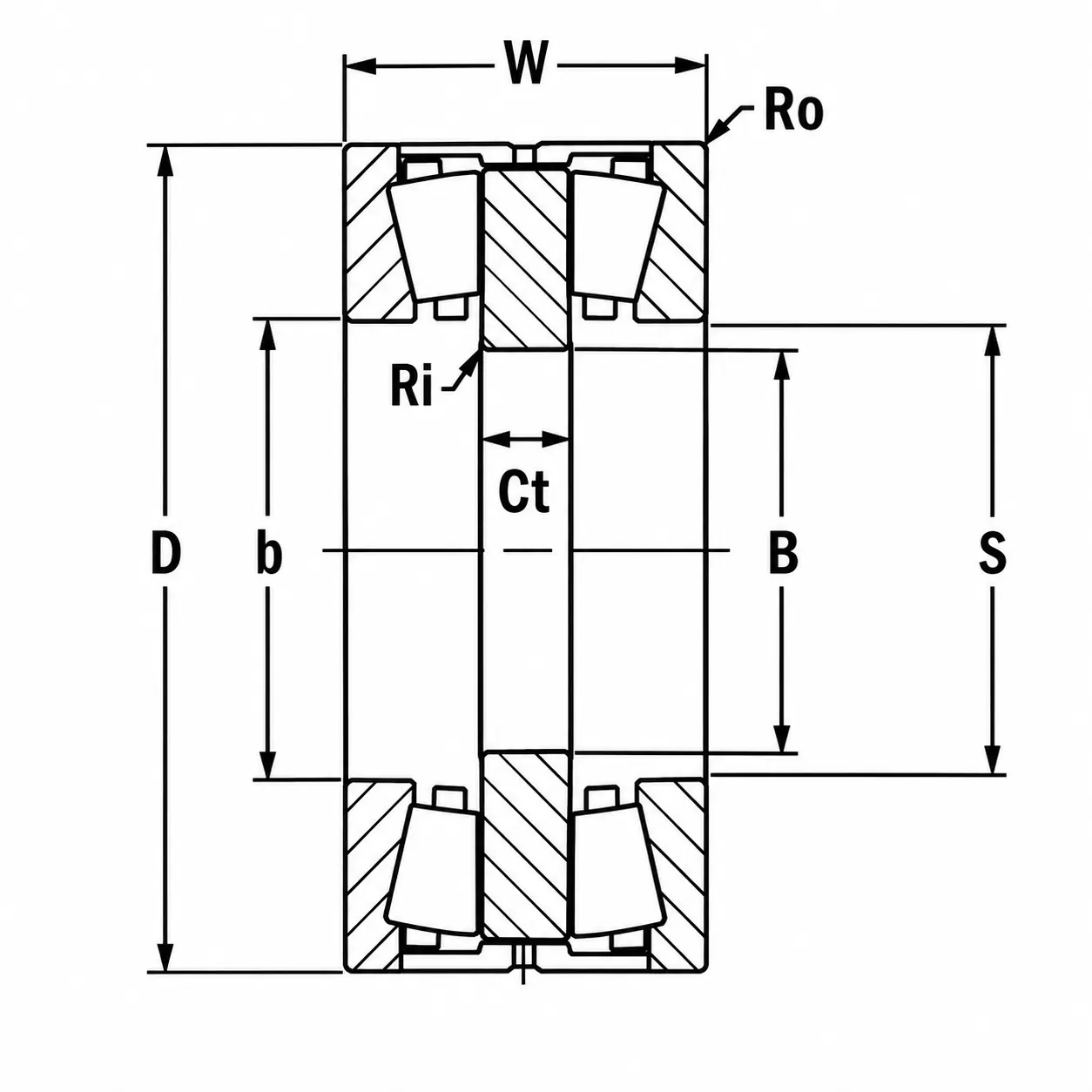

Weight and Dimensions
Bore (B): 250 mm 9.8425 in
Outer (D): 380 mm 14.9606 in
Width (W): 100 mm 3.937 in
Weight: 44 kg 96 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 897 KN 201700 lbs
Static Capacity (C0) : 4530 KN 1018400 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Thrust Bearings Guide
Product Description
The ARB VVFT8050 tapered roller thrust bearing consists of tapered rollers, precision thrust plates, and robust cage assemblies, allowing it to support thrust loads in both directions. Its double acting design provides high bidirectional thrust load capacity and axial rigidity, while the V-Flat design allows a degree of radial float within the bearing arrangement. It is suitable for heavy-duty industrial machinery, extrusion equipment, rock crushing equipment, and other high-load applications requiring reliable bidirectional axial support.
