VVFT8096
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: VVFT8096
Category: Tapered Roller Thrust Bearings
1

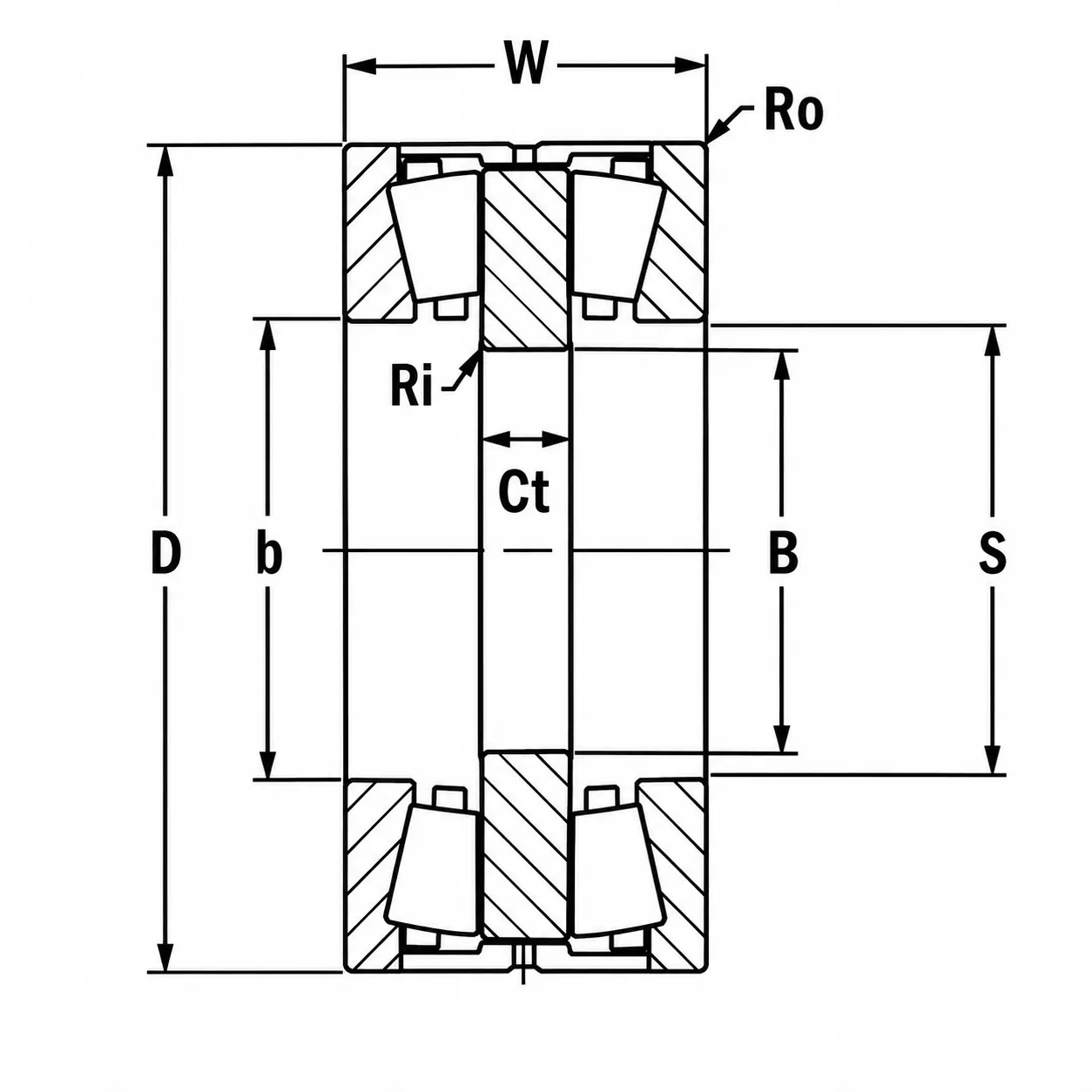

Weight and Dimensions
Bore (B): 480 mm 18.8976 in
Outer (D): 710 mm 27.9528 in
Width (W): 218 mm 8.5827 in
Weight: 305 kg 672 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 3350 KN 753200 lbs
Static Capacity (C0) : 16500 KN 3709400 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Thrust Bearings Guide
Product Description
The ARB VVFT8096 tapered roller thrust bearing consists of tapered rollers, precision thrust plates, and robust cage assemblies, allowing it to support thrust loads in both directions. Its double acting design provides high bidirectional thrust load capacity and axial rigidity, while the V-Flat design allows a degree of radial float within the bearing arrangement. It is suitable for heavy-duty industrial machinery, extrusion equipment, rock crushing equipment, and other high-load applications requiring reliable bidirectional axial support.
