XR882055
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: XR882055
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 901.7 mm 35.5 in
Outside Diameter (D): 1117.6 mm 44 in
Width (T): 82.55 mm 3.25 in
Max Fillet (R): 3.3 mm 0.13 in
Weight: 195.8 kg 432 lbs
Data from Timken (medias)
K Factor: 0.44
Radial Rating: 300 KN 67400 lbf
Axial Rating: 396 KN 88900 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

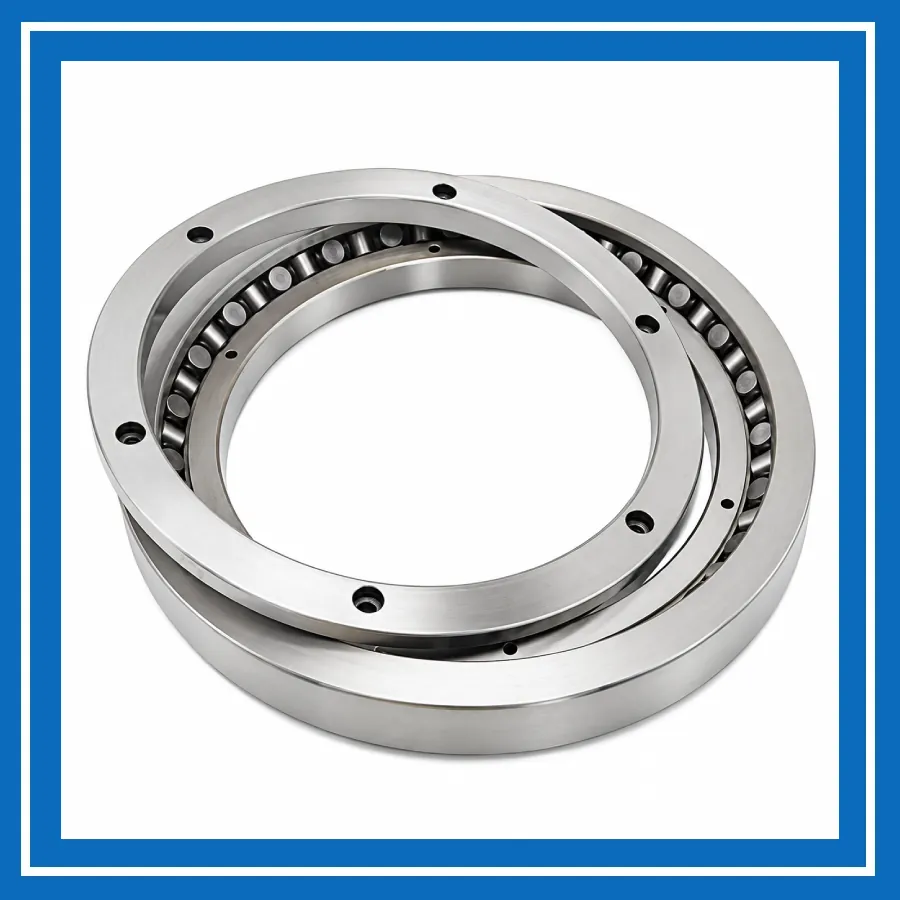

The TIMKEN XR882055 crossed tapered roller thrust bearing consists of precision-machined inner and outer races with two sets of tapered rollers arranged alternately at 90-degree angles. Its compact crossed roller configuration provides a wide effective bearing spread, delivering high rigidity, precise rotational accuracy, low starting torque, and excellent resistance to overturning moments. The design also supports combined radial and axial loads while maintaining stable rotation and minimizing space requirements. Ideal for precision rotating equipment, the bearing is suitable for vertical boring mills, grinding machines, machine tool rotary tables, and other pivot or pedestal applications in the United States industrial market.
