XW7–1/2
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Andrews/ OEM
Bearing Number: XW7–1/2
Category: Thrust Ball Bearings
1
Weight and Dimensions
Shaft (d): 190.500 mm 7.500 in
Outside Diameter (D): 234.950 mm 9.2500 in
Width (T): 34.930 mm 1.3752 in
Weight: 3.220 KG 7.1 lbs
Data from Andrews (medias)
Dynamic Capacity (Ca): 103 KN 23200 lbf
Static Capacity (Coa): 400 KN 90000 lbf
Limiting Speed (nG): 950 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Andrews Thrust Ball Bearings Guide
Product Description

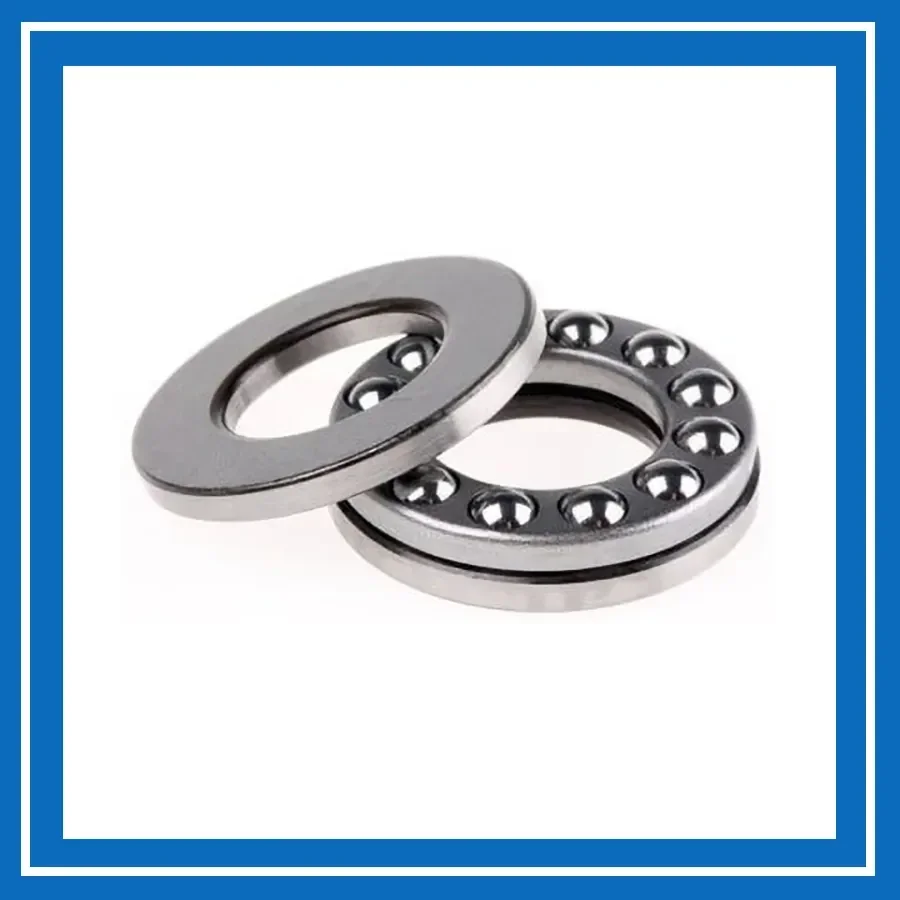

The Andrews XW7–1/2 Thrust Ball Bearing features a light cross-section, single-direction design with two grooved thrust washers and a ball-and-cage assembly. Its light cross-section construction provides a compact bearing arrangement, while the grooved raceways support smooth rotation and reliable axial load transmission. Designed to accommodate axial loads in one direction, the bearing is suitable for compact mechanical assemblies, light industrial machinery, and equipment requiring space-efficient thrust support, with speed limits specified for oil lubrication. HSN provides replacement bearing solutions for U.S. equipment maintenance, aftermarket sourcing, and OEM applications, with dimensional verification and custom supply options available.
