ZSL192308
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: ZSL192308
Category: Cylindrical Roller Bearings
1

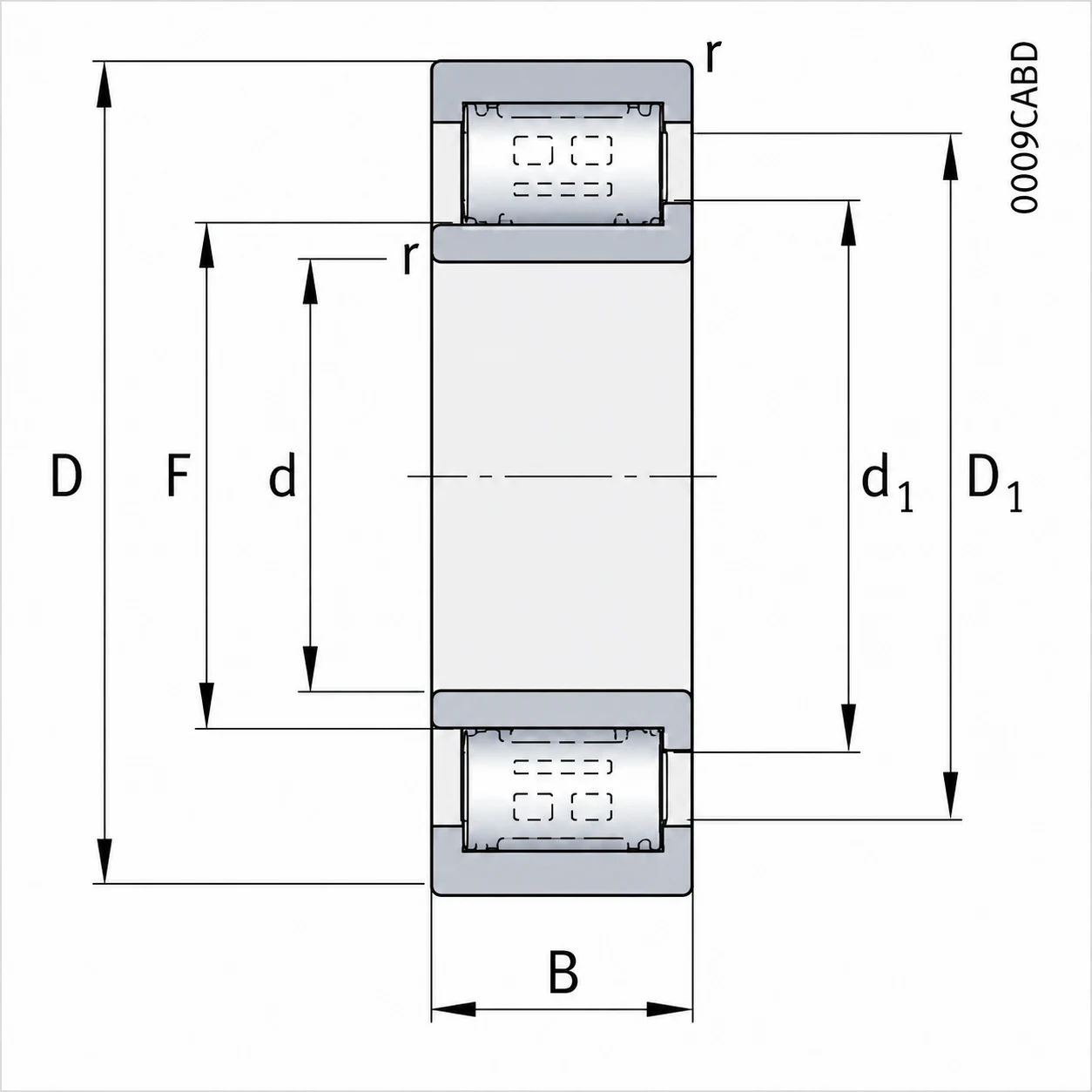

Weight and Dimensions
Bore (d): 40 mm
Outer (D): 90 mm
Width (B): 33 mm
Weight: 1 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 141000 N
Basic Static Load Rating, Radial (C0r): 142000 N
Fatigue Load Limit, Radial (Cur): 21300 N
Limiting Speed (nG): 10600 rpm
Reference Speed (nϑr): 6300 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The ZSL192308 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and plastic roller separators. The ZSL design allows a high number of rollers while preventing direct roller-to-roller contact. As a result, the bearing combines high radial load capacity with reduced friction and supports higher operating speeds.
The ZSL192308 is a semi-locating bearing suitable for vibrating screens, sorting machinery, light conveying equipment, and material handling systems. Its low-friction design and high radial load capacity support reliable operation where vibration, repeated loads, and continuous movement.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
