ZSL192318-TB-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: ZSL192318-TB-XL
Category: Cylindrical Roller Bearings
1

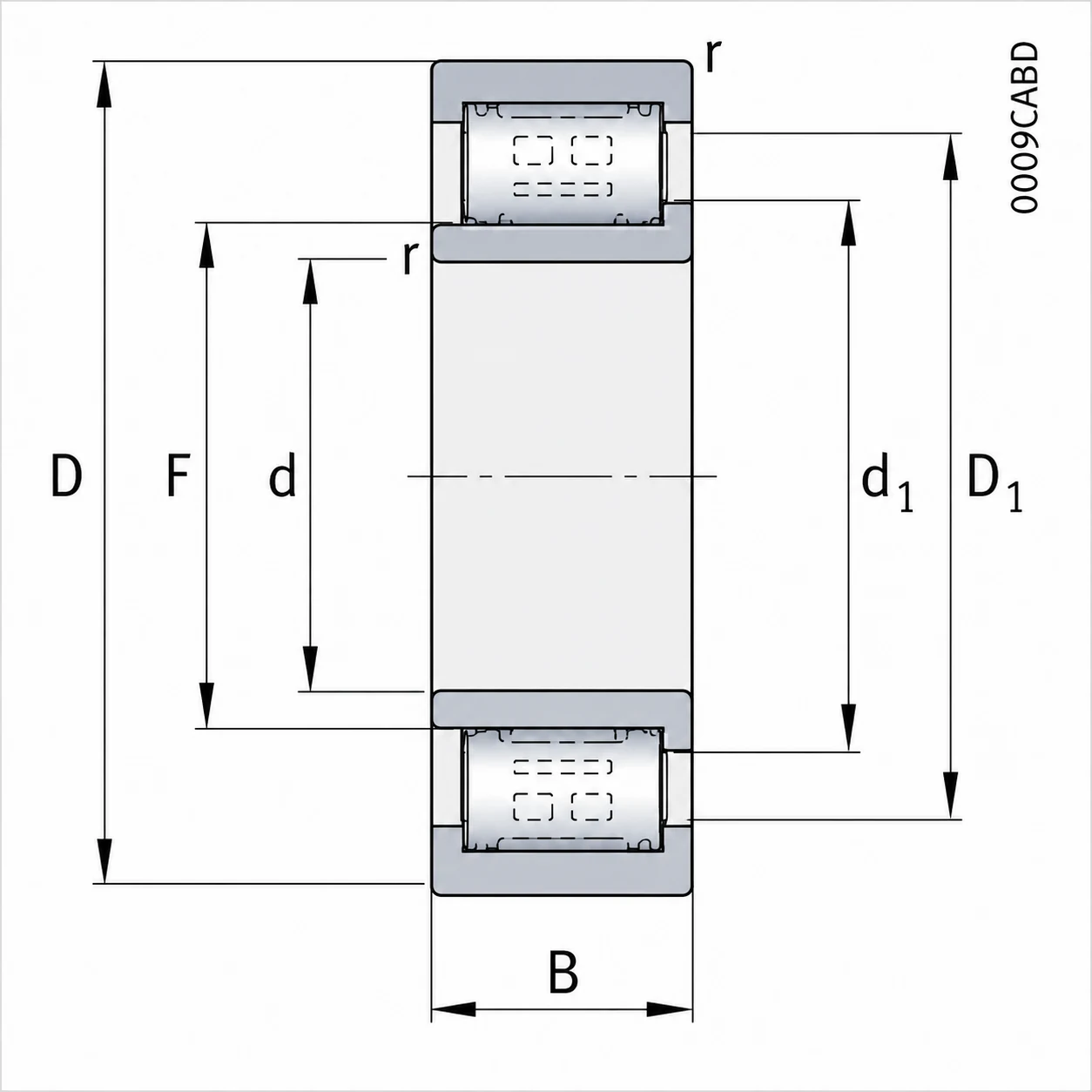

Weight and Dimensions
Bore (d): 90 mm
Outer (D): 190 mm
Width (B): 64 mm
Weight: 8.7 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 590000 N
Basic Static Load Rating, Radial (C0r): 610000 N
Fatigue Load Limit, Radial (Cur): 108000 N
Limiting Speed (nG): 5100 rpm
Reference Speed (nϑr): 3750 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The ZSL192318-TB-XL FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and plastic roller separators. The ZSL design combines high radial load capacity with reduced friction and increased speed capability. Meanwhile, the TB design optimizes roller-to-rib contact, while X-life technology improves operating performance and service life.
The ZSL192318-TB-XL is a semi-locating bearing suitable for high-capacity vibrating screens, crushing and screening plants, mineral processing equipment, and bulk material handling machinery. Its low-friction design, high radial load capacity, and optimized rib contact support reliable operation under vibration and continuous loads.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
