120TVL700
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 120TVL700
Category: Angular Contact Thrust Ball Bearings
1

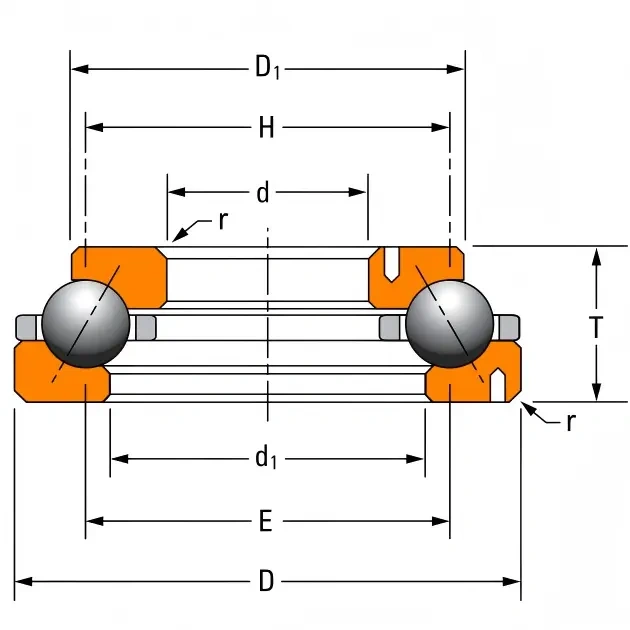

Weight and Dimensions
Bore (d): 304.800 mm 12.0000 in
Outer (D): 406.400 mm 16.0000 in
Width (B): 57.150 mm 2.2500 in
Outer Diameter Of Upper Ring (D1) : 368.300 mm 14.5000 in
Inner Diameter Of Lower Ring (d1) : 342.900 mm 13.5000 in
Weight: 18,5 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 350 KN
Static Radial Load Rating (Ca0): 1370 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Angular Contact Thrust Ball Bearings
Product Description

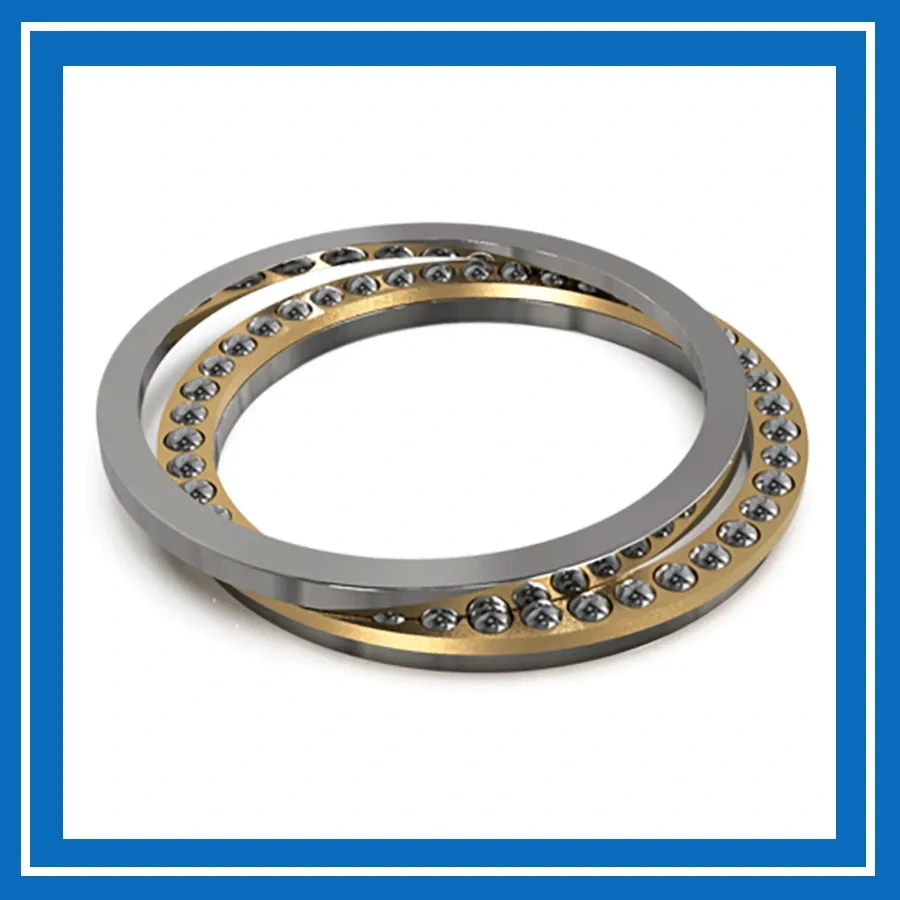

The 120TVL700 Timken angular contact thrust ball bearing features a separable single-row design with bearing rings and balls arranged at a contact angle. This design primarily supports axial loads in one direction while also accommodating radial loads, providing reliable load support and stable operation. It is widely used in rotary tables for oil and gas drilling, where it supports and positions rotating components under axial and radial loads generated during drilling operations.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
