530TVL719
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 530TVL719
Category: Angular Contact Thrust Ball Bearings
1

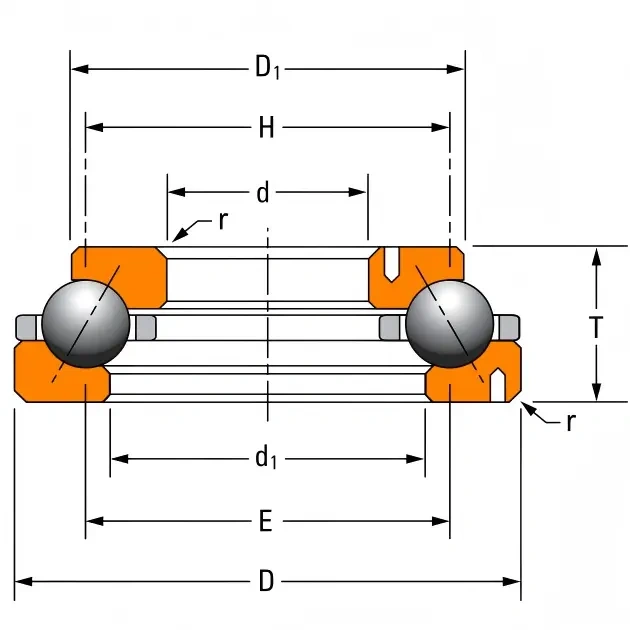

Weight and Dimensions
Bore (d): 1346.200 mm 53.0000 in
Outer (D): 1517.650 mm 59.7500 in
Width (B): 104.775 mm 4.1250 in
Outer Diameter Of Upper Ring (D1) : 1457.320 mm 57.3748 in
Inner Diameter Of Lower Ring (d1) : 1406.520 mm 55.3748 in
Weight: 230,0 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 810 KN
Static Radial Load Rating (Ca0): 7080 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Angular Contact Thrust Ball Bearings
Product Description

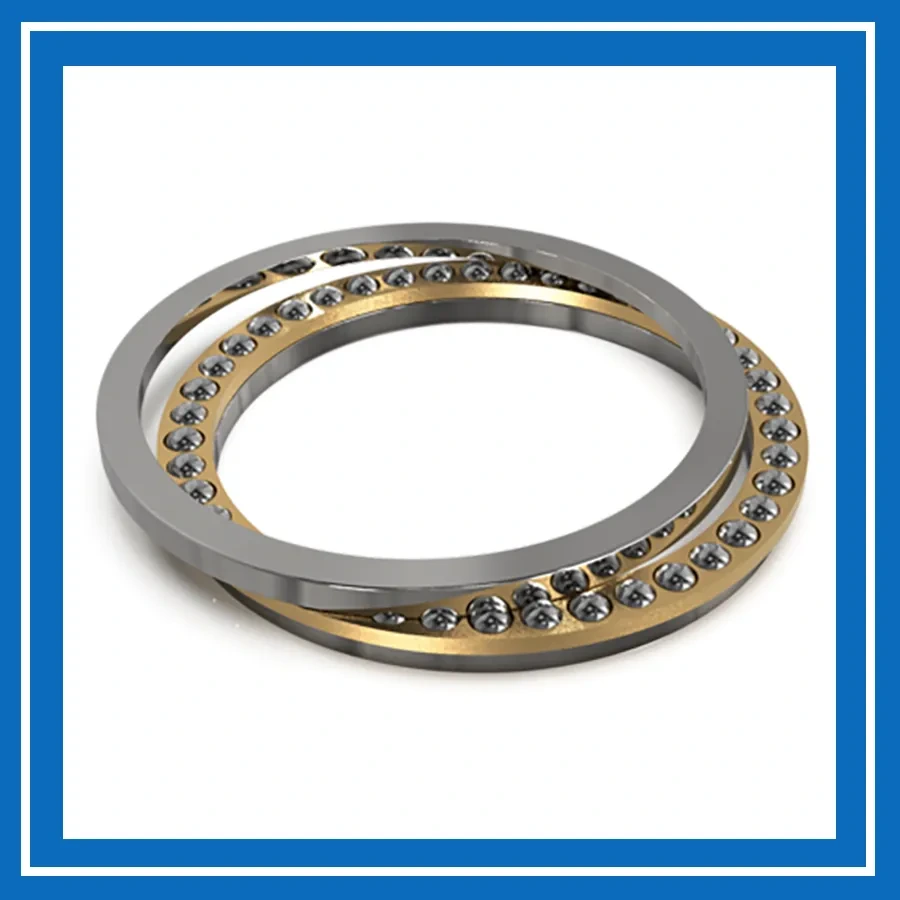

The 530TVL719 Timken angular contact thrust ball bearing features a separable single-row design with bearing rings and balls arranged at a contact angle. This design primarily supports axial loads in one direction while also accommodating radial loads, providing reliable load support and stable operation. It is widely used in rotary tables for oil and gas drilling, where it supports and positions rotating components under axial and radial loads generated during drilling operations.
