13685 / 13621A(13600LA)
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 13685 / 13621A(13600LA)
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 38.100 mm 1.5000 in
Outer (D): 69.012 mm 2.7170 in
Width (T): 19.050 mm 0.7500 in
Width (T1): 20.190 mm 0.7949 in
Width (B): 19.050 mm 0.7500 in
Weight: 0.27 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 67200 N
Dynamic Radial Load Rating – 90M Revs (C90) : 17400 N
Dynamic Axial Rating – 90M Revs (Ca90): 12000 N
Static Radial Load Rating (C0): 67900 N
e Factor: 0.4
K Factor: 1.45
Y Factor: 1.49
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product description

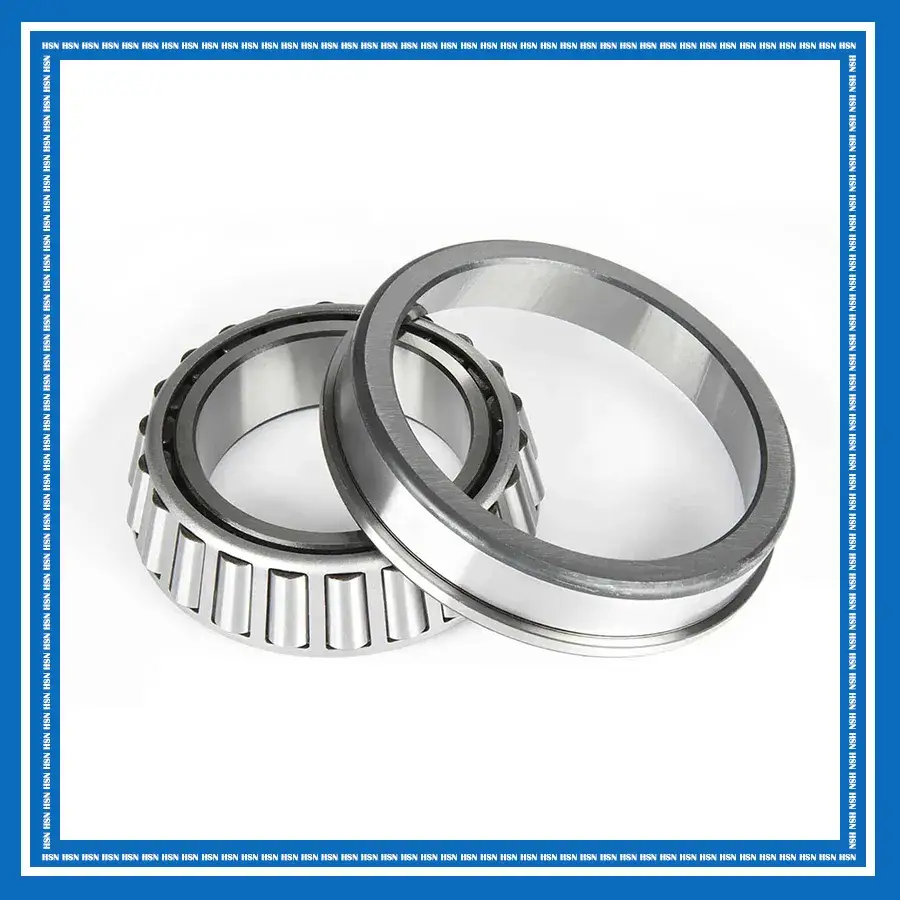

The 13685 / 13621A(13600LA) Timken TSL tapered roller bearing features a single-row tapered roller bearing design with a DUO-FACE PLUS seal pressed onto the large rib of the inner ring. The dual-lip sealing system provides effective protection against lubricant leakage and external contamination, with one seal lip operating against the housing bore and the other sealing against the hardened and ground surface of the outer-ring front face. This integrated sealing design simplifies installation and provides reliable performance for grease-lubricated applications operating at moderate speeds.
The 13685 / 13621A(13600LA) bearing is widely used in automotive systems, industrial equipment, agricultural machinery, and other applications where reliable sealing, load support, and reduced maintenance requirements are required.
