148VFTV926
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Description
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 148VFTV926
Category: Tapered Roller Thrust Bearings
1

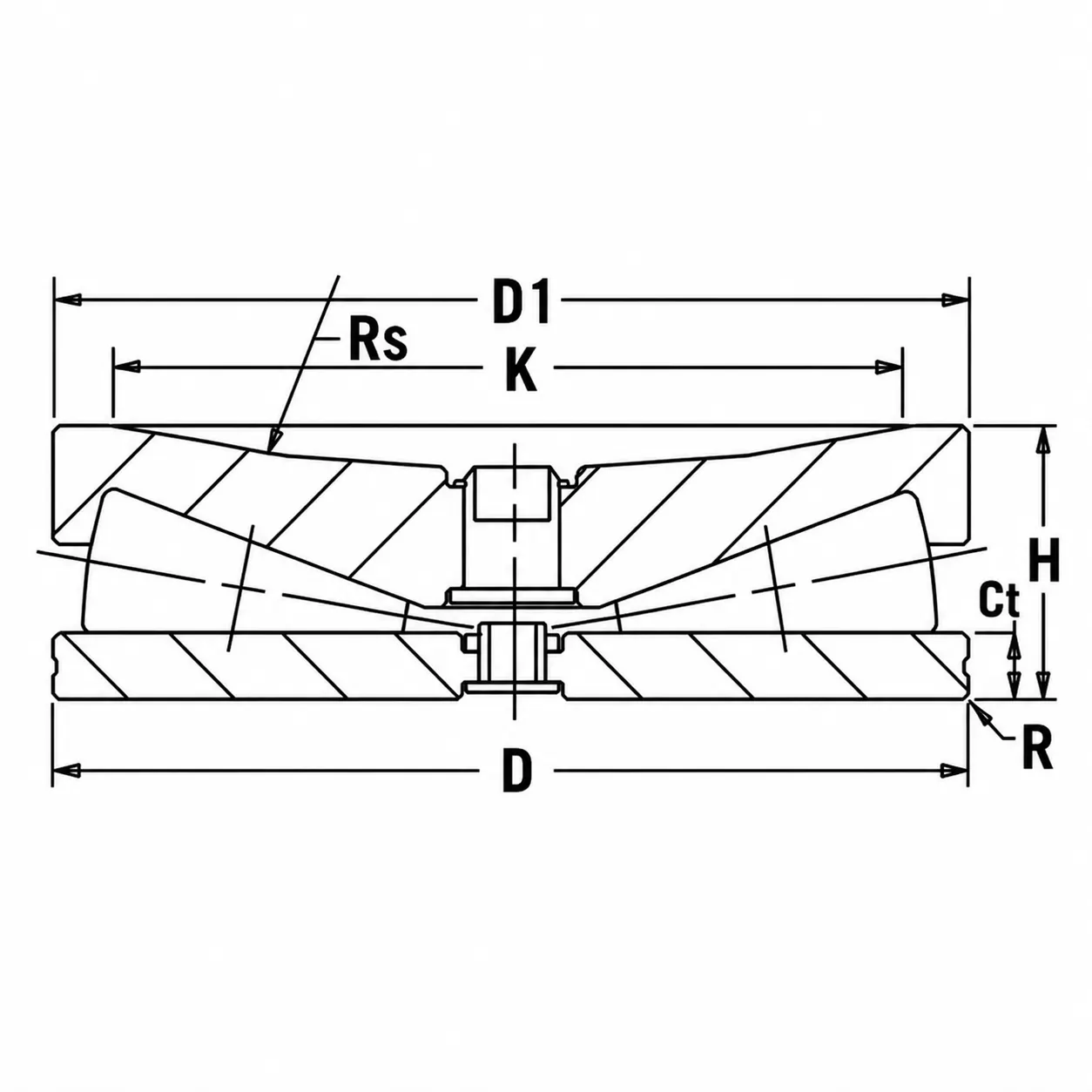

Weight and Dimensions
Screw Ext. K (K): 330.2 mm 13 in
Outer (D): 377.825 mm 14.875 in
Height (H): 111.125 mm 4.375 in
Weight: 87 kg 192 lbs
Data from ARB (medias)
Static Capacity (C0) : 9100 KN 2040000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Tapered Roller Thrust Bearings Guide
Product Description
The ARB 148VFTV926 tapered roller thrust bearing consists of a full complement of tapered rollers, a spherical upper thrust plate, and a flat lower thrust plate. Its full complement design provides high thrust load capacity and rigidity, while the spherical seating helps accommodate initial misalignment under low-speed, heavy-load conditions. It is mainly used in the screwdown mechanisms of plate and strip rolling mills, providing reliable axial support and helping with accurate roll gap and thickness adjustment.
