16100-ZZ
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 16100-ZZ
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 10 mm
Outer (D): 28 mm
Width (B): 8 mm
Weight: 0.022 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1): 4600 N
Static Radial Load Rating (C0): 2000 N
Limiting Speed – Oil: 25000 rpm
Limiting Speed – Grease: 37000 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Deep Groove Ball Bearings
Product Description

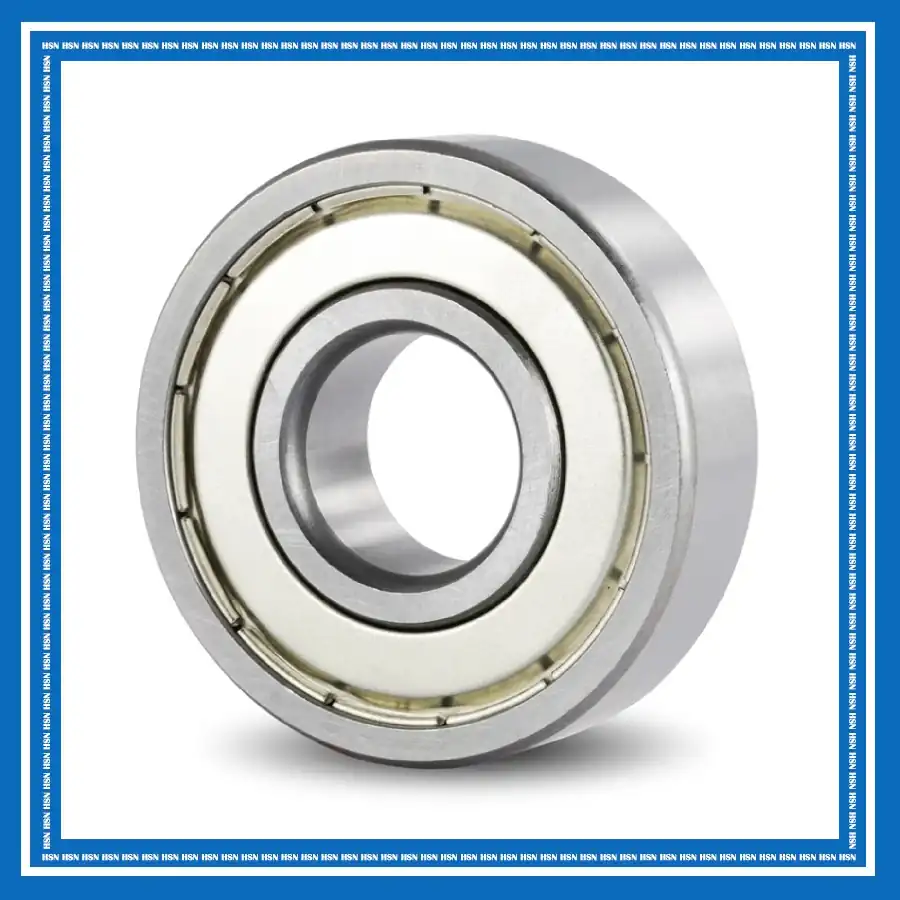

The 16100-ZZ Timken deep groove ball bearing consists of an inner ring, an outer ring, balls, a cage, and metal shields on both sides. The double-shield design helps retain lubricant and protect the bearing from dust and contaminants while maintaining low friction and high-speed performance. It supports radial loads and axial loads in both directions for smooth and reliable operation.
The 16100-ZZ bearing is widely used in electric motors, fans, pumps, conveyors, power tools, and general industrial equipment. It is particularly suitable for applications requiring high-speed operation, low friction, lubricant retention, and protection from external contamination.
