195 TTSF 938
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: 252 TTSF 958
Category: Tapered Roller Thrust Bearings
1

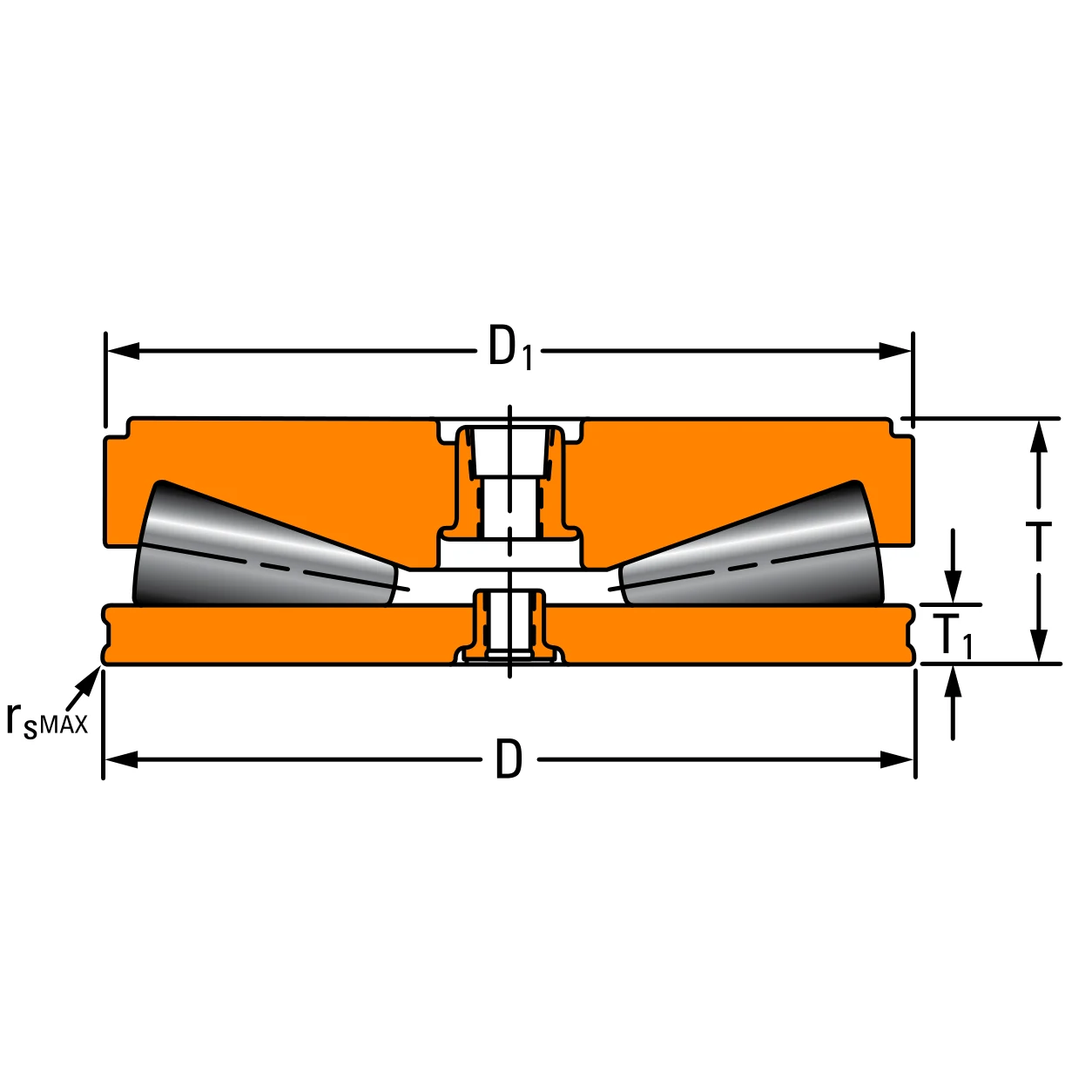

Weight and Dimensions
Large O.D.D: 641.350 mm 25.2500 in
Small O.D.D1 (mm): 638.988 mm 25.1570 in
Bearing Width (T): 205.740 mm 8.1000 in
Flat Race Width (T1): 38.100 mm 1.5000 in
Weight: 432.0 kg 952.0 lbs
Data from Timken (medias)
Static Load Rating CaO: 52930 KN 11900000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN 252 TTSF 958 screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a heavy-duty configuration designed for rolling mill screwdown mechanisms. Its full complement roller design provides high axial load capacity and stable support under extreme thrust loads, while the robust construction helps maintain reliable performance in demanding rolling operations. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and heavy-duty metal processing equipment in the United States industrial market, where dependable axial support and durability are essential.
