20206-K-TVP-C3+H206
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 20206-K-TVP-C3+H206
Category: Barrel Roller Bearings
1

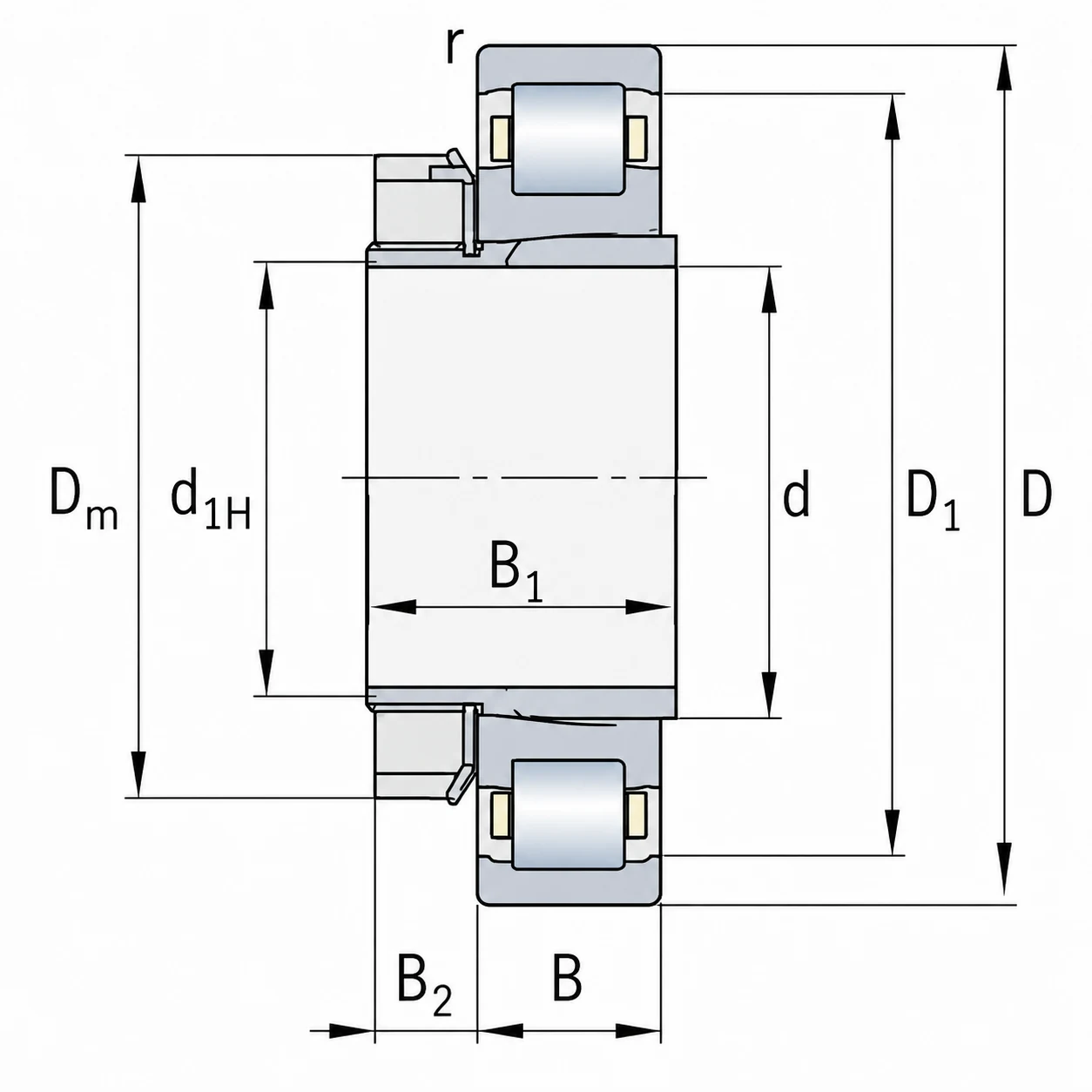

Weight and Dimensions
Bore (d): 30 mm
Outer (D): 62 mm
Width (B): 16 mm
Weight: 0.303 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 28000 N
Basic Static Load Rating, Radial (C0r): 28500 N
Fatigue Load Limit, Radial (Cur): 2850 N
Limiting Speed (nG): 10800 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Barrel Roller Bearings Guide
Product Description
The 20206-K-TVP-C3+H206 FAG barrel roller bearing consists of an inner ring, outer ring, barrel rollers, a cage, and an adapter sleeve. Its self-aligning design compensates for angular misalignment and shaft deflection, while the barrel roller geometry provides very high radial load capacity and good resistance to shock loads. The tapered bore and adapter sleeve allow secure mounting on cylindrical shafts, while C3 radial internal clearance provides additional operating clearance.
The 20206-K-TVP-C3+H206 bearing is suitable for mining and cement, material handling, steel and metallurgy, construction machinery, conveying systems, and general industrial machinery. Its high radial load capacity and self-aligning capability support demanding operating conditions, while the adapter sleeve provides flexible and practical shaft mounting.
