2210-K-2RS-TVH-C3+H310
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 2210-K-2RS-TVH-C3+H310
Category: Self-aligning Ball Bearings
1
Weight and Dimensions
Bore (d): 50 mm
Outer (D): 90 mm
Width (B): 23 mm
Weight: 0.899 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 22900 N
Basic Static Load Rating, Radial (C0r): 8000 N
Fatigue Load Limit, Radial (Cur): 500 N
Limiting Speed (nG): 4250 rpm
Reference Speed (nϑr): – rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description

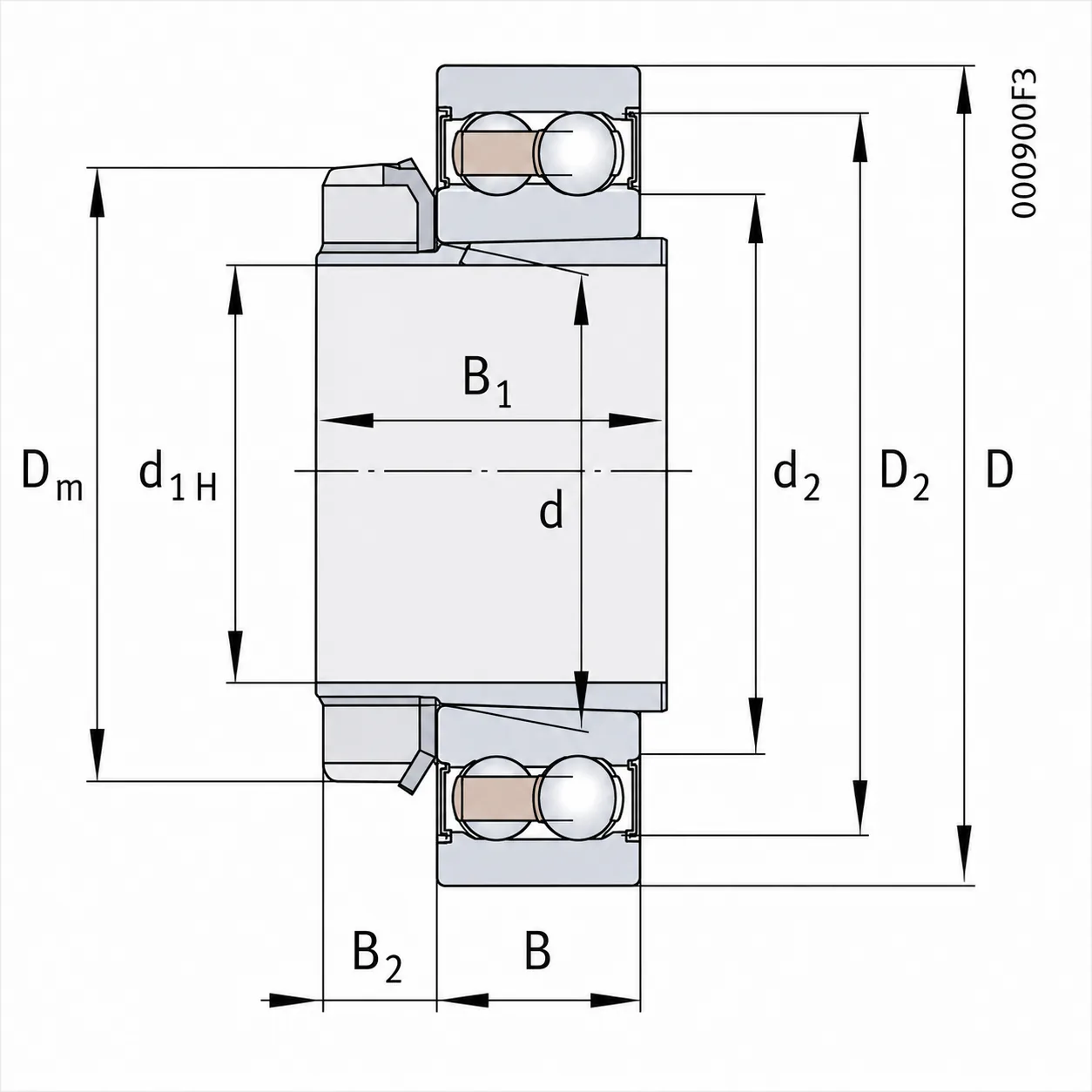

The 2210-K-2RS-TVH-C3+H310 FAG self-aligning ball bearing features a spherical outer raceway, tapered-bore inner ring, two rows of balls, a PA66 solid cage, contact seals on both sides, and an adapter sleeve. The self-aligning design compensates for misalignment, while the 2RS seals protect against contamination and retain grease. C3 clearance and the adapter sleeve provide reliable operation and convenient shaft mounting.
The 2210-K-2RS-TVH-C3+H310 bearing is widely used in belt conveyors, agricultural equipment, and material handling machinery. It is suitable for dusty environments requiring self-alignment, reliable sealing, and convenient mounting.
