2222-K-M-C3+H322
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 2222-K-M-C3+H322
Category: Self-aligning Ball Bearings
1
Weight and Dimensions
Bore (d): 110 mm
Outer (D): 200 mm
Width (B): 53 mm
Weight: 9.52 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 126000 N
Basic Static Load Rating, Radial (C0r): 51000 N
Fatigue Load Limit, Radial (Cur): 2550 N
Limiting Speed (nG): 5000 rpm
Reference Speed (nϑr): 4700 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Self-aligning Ball Bearings
Product Description

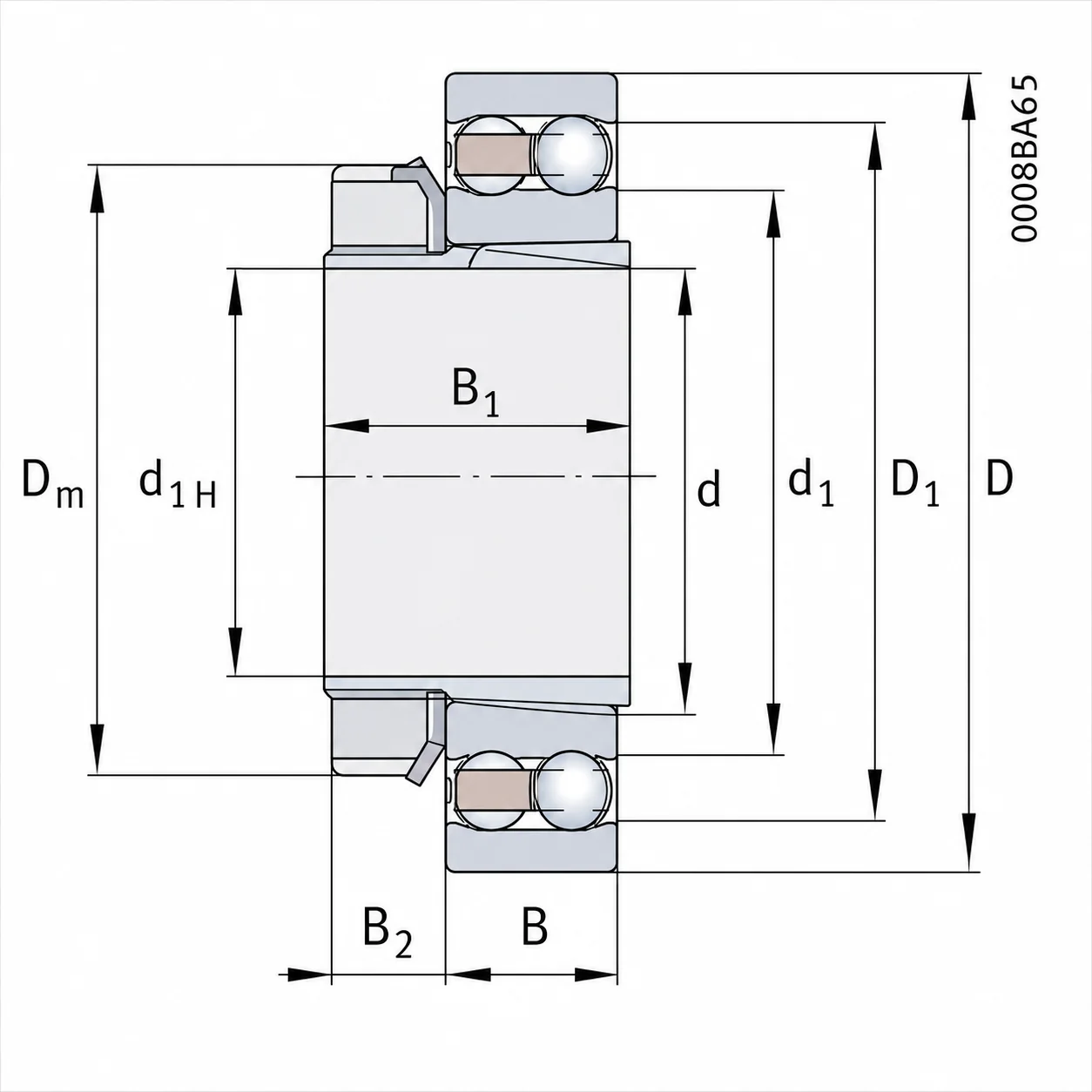

The 2222-K-M-C3+H322 FAG self-aligning ball bearing consists of a spherical outer raceway, tapered-bore inner ring, two rows of balls, a solid brass cage, and an adapter sleeve. The self-aligning design compensates for shaft deflection and misalignment, while C3 clearance and the robust brass cage support reliable operation under demanding conditions. The adapter sleeve also simplifies mounting on cylindrical shafts.
The 2222-K-M-C3+H322 bearing is widely used in industrial fans, material handling equipment, paper machinery, and transmission systems. It is suitable for applications requiring self-alignment, robust cage performance, and flexible shaft mounting.
