248/630-MB
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 248/630-MB
Category: Spherical Roller Bearings
1
Weight and Dimensions
Bore (d): 630 mm
Outer (D): 780 mm
Width (B): 150 mm
Weight: 163 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 3200 KN
Basic Static Load Rating, Radial (C0r): 9000 KN
Fatigue Load Limit, Radial (Cur): 560000 N
Limiting Speed (nG): 700 r/min
Reference Speed (nϑr): 209 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Spherical Roller Bearings Guide
Product Description

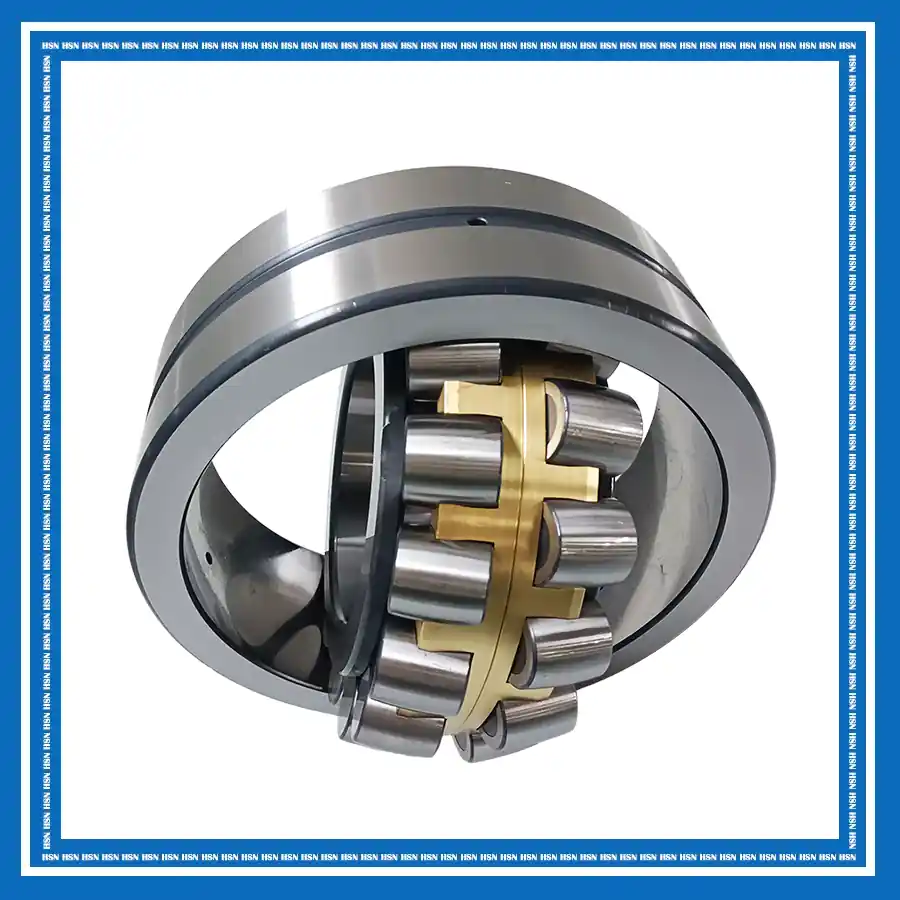

The 248/630-MB FAG spherical roller bearing consists of an inner ring, outer ring, two rows of spherical rollers, and a solid brass cage. Its self-aligning design accommodates angular misalignment and shaft deflection while supporting high radial loads and axial loads in both directions. The MB solid brass cage provides high strength and durability, making the bearing suitable for demanding operating conditions.
The 248/630-MB bearing is suitable for paper machinery, steel and metallurgy, mining and cement, material handling, industrial transmissions, and heavy industrial equipment. Its high radial load capacity and self-aligning capability support applications exposed to heavy loads, vibration, shaft deflection, and alignment deviations.
