285CM363
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: 285CM363
Category: Cylindrical Roller Bearings
1

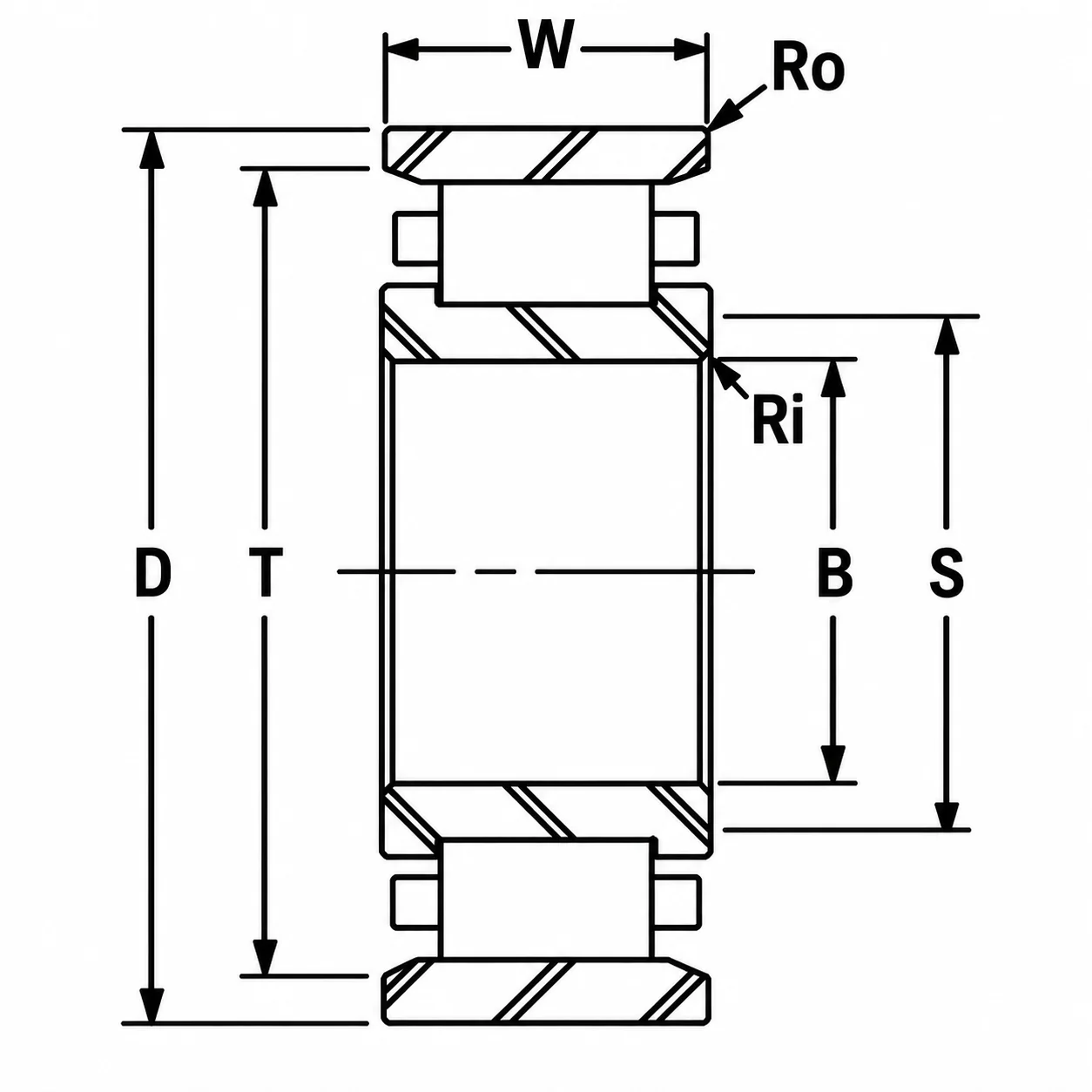

Weight and Dimensions
Bore (B): 723.9 mm 28.5 in
Outer Diameter (D): 914.4 mm 36 in
Width (W): 80.963 mm 3.1875 in
Weight: 136 kg 299 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1735 KN 390000 lbs
Static Capacity (Co) : 3692 KN 830000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearing Guide
Product Description
The American Roller Bearing 285CM363 cylindrical roller bearing consists of a double-ribbed inner ring, a ribless outer ring, and a cylindrical roller assembly. Its robust cylindrical roller design provides high radial load capacity and rigidity, while the ribless outer ring allows axial displacement between the inner and outer rings to accommodate shaft thermal expansion during operation. The separable construction facilitates mounting, inspection, and maintenance while ensuring reliable performance under heavy radial loads and demanding operating conditions. It is suitable for demanding applications in the United States industrial market, including steel rolling mills, industrial gearboxes, mining machinery, heavy-duty transmission systems, material handling equipment, and paper machinery requiring stable radial support and axial displacement capability.
