Description
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: 302TVL624
Category: Angular Contact Thrust Ball Bearings
1

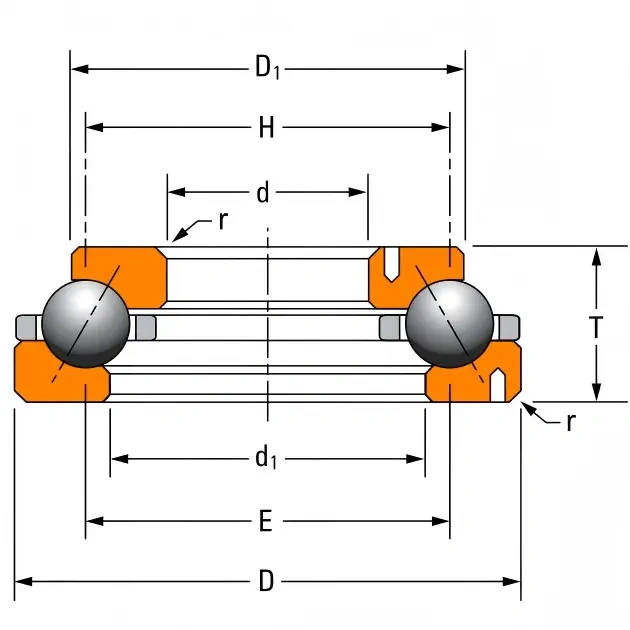

Weight and Dimensions
Bore (d): 768.350 mm 30.2500 in
Outer (D): 1006.475 mm 39.6250 in
Width (B): 139.700 mm 5.5000 in
Outer Diameter Of Upper Ring (D1) : 901.700 mm 35.5000 in
Inner Diameter Of Lower Ring (d1) : 838.200 mm 33.0000 in
Weight: 271,1 kg
Data from Timken (medias)
Dynamic Radial Load Rating (Ca) : 1190 KN
Static Radial Load Rating (Ca0): 7870 KN
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Angular Contact Thrust Ball Bearings
Product Description

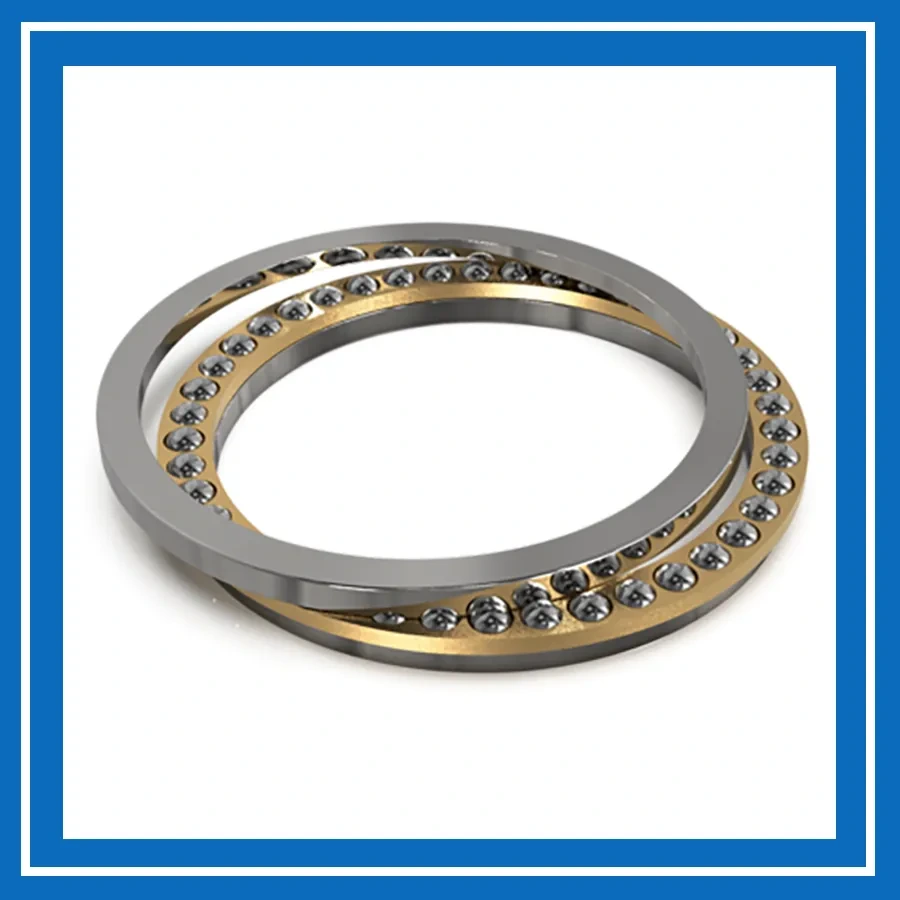

The 302TVL624 Timken angular contact thrust ball bearing features a separable single-row design with bearing rings and balls arranged at a contact angle. This design primarily supports axial loads in one direction while also accommodating radial loads, providing reliable load support and stable operation. It is widely used in rotary tables for oil and gas drilling, where it supports and positions rotating components under axial and radial loads generated during drilling operations.
