3210-BD-XL-TVH
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3210-BD-XL-TVH
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 50 mm
Outer (D): 90 mm
Width (B): 30.2 mm
Weight: 0.672 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 53000 N
Basic Static Load Rating, Radial (C0r): 44000 N
Fatigue Load Limit, Radial (Cur): 3000 N
Limiting Speed (nG): 7800 rpm
Reference Speed (nϑr): 7600 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

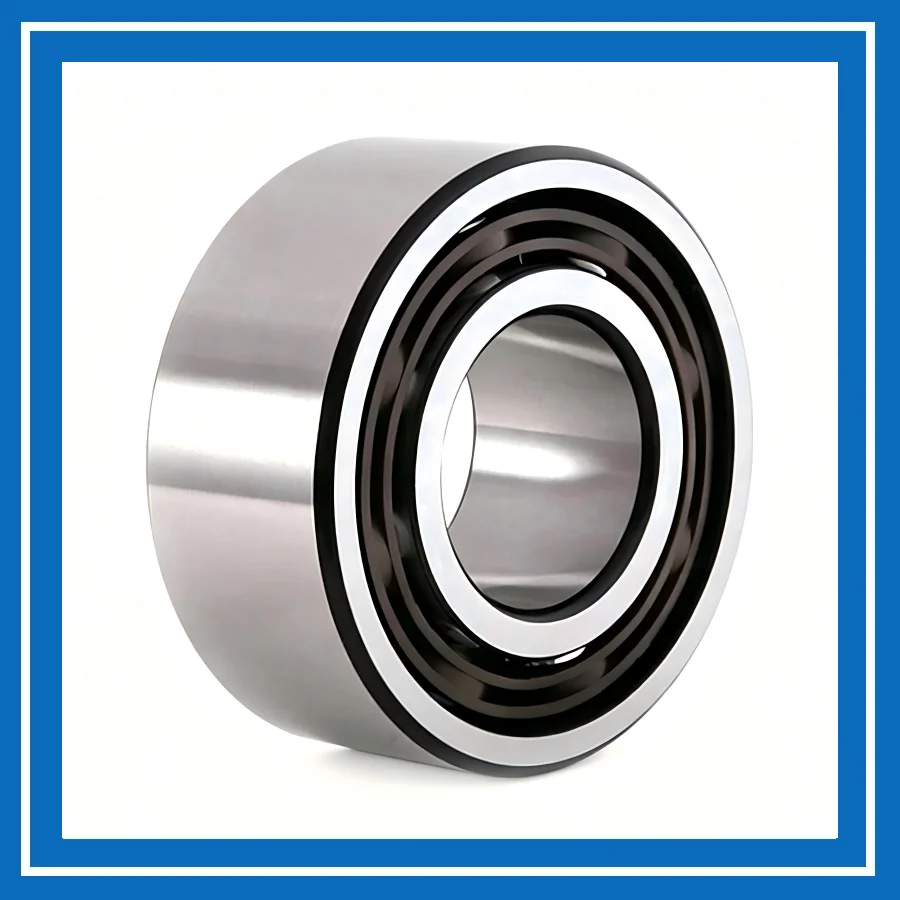

The 3210-BD-XL-TVH FAG double row angular contact ball bearing consists of an inner ring, an outer ring, two rows of balls, and a solid cage made from glass-fiber reinforced polyamide PA66. The 30° contact angle and optimized internal design provide high radial and bidirectional axial load capacity while also supporting tilting moments. The X-life design improves load-carrying performance and service life, while the lightweight TVH cage provides reliable ball guidance and smooth operation.
The 3210-BD-XL-TVH bearing is widely used in industrial gear units, conveying equipment, packaging machinery, lifting equipment, and automated production systems. It is particularly suitable for applications requiring high combined load capacity, rigid bearing support, compact installation, and reliable continuous operation.
