3307-DA
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 3307-DA
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 80 mm
Width (B): 34,9 mm
Weight: 0.889 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 50000 N
Basic Static Load Rating, Radial (C0r): 41000 N
Fatigue Load Limit, Radial (Cur): 2600 N
Limiting Speed (nG): 9600 rpm
Reference Speed (nϑr): 7100 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

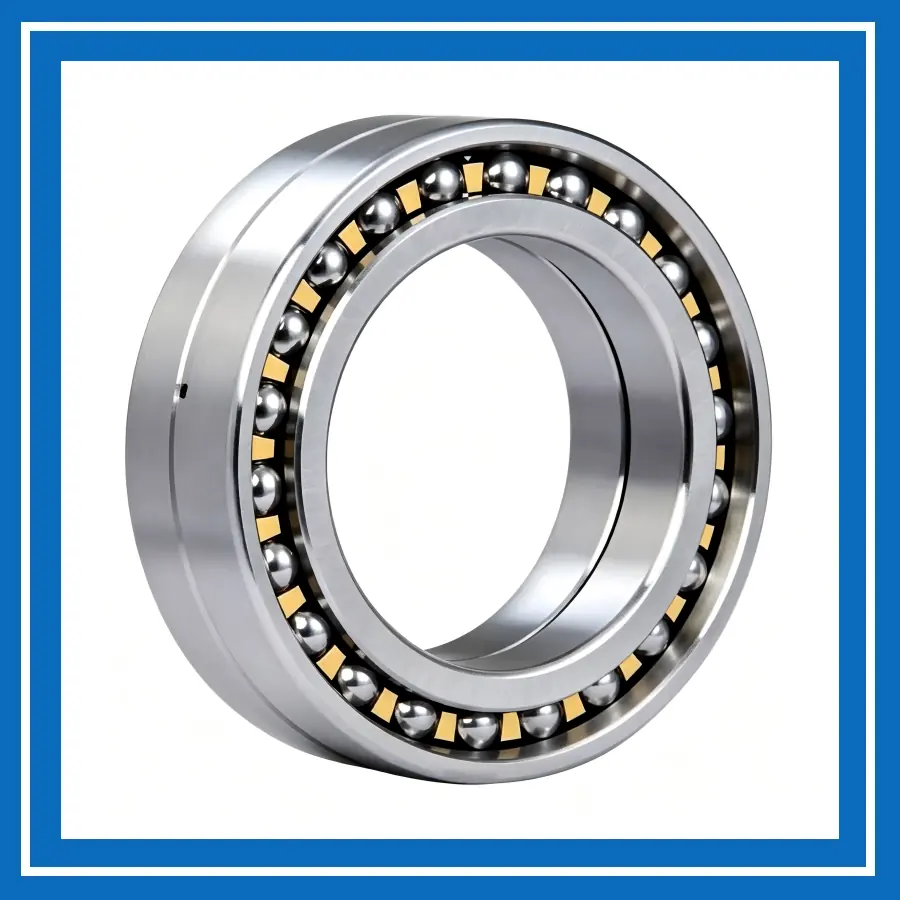

The 3307-DA FAG double row angular contact ball bearing consists of an outer ring, a split inner ring, and two rows of balls. The 45° contact angle provides high axial load capacity in both directions while also supporting radial loads. The split inner ring design increases axial load capacity and makes the bearing suitable for high and alternating axial loads.
The 3307-DA bearing is widely used in fluid pumps, industrial transmissions, conveying equipment, lifting machinery, and process equipment. It is particularly suitable for applications requiring high bidirectional axial load capacity, combined load support, rigid axial guidance, and reliable operation under changing axial loads.
