6418-M
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 6418-M
Category: Deep Groove Ball Bearings
1
Weight and Dimensions
Bore (d): 90 mm
Outer (D): 225 mm
Width (B): 54 mm
Weight: 11.7 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 209000 N
Basic Static Load Rating, Radial (C0r): 162000 N
Fatigue Load Limit, Radial (Cur): 8900 N
Limiting Speed (nG): 5200 r/min
Reference Speed (nϑr): 4950 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Deep Groove Ball Bearings
Product Description

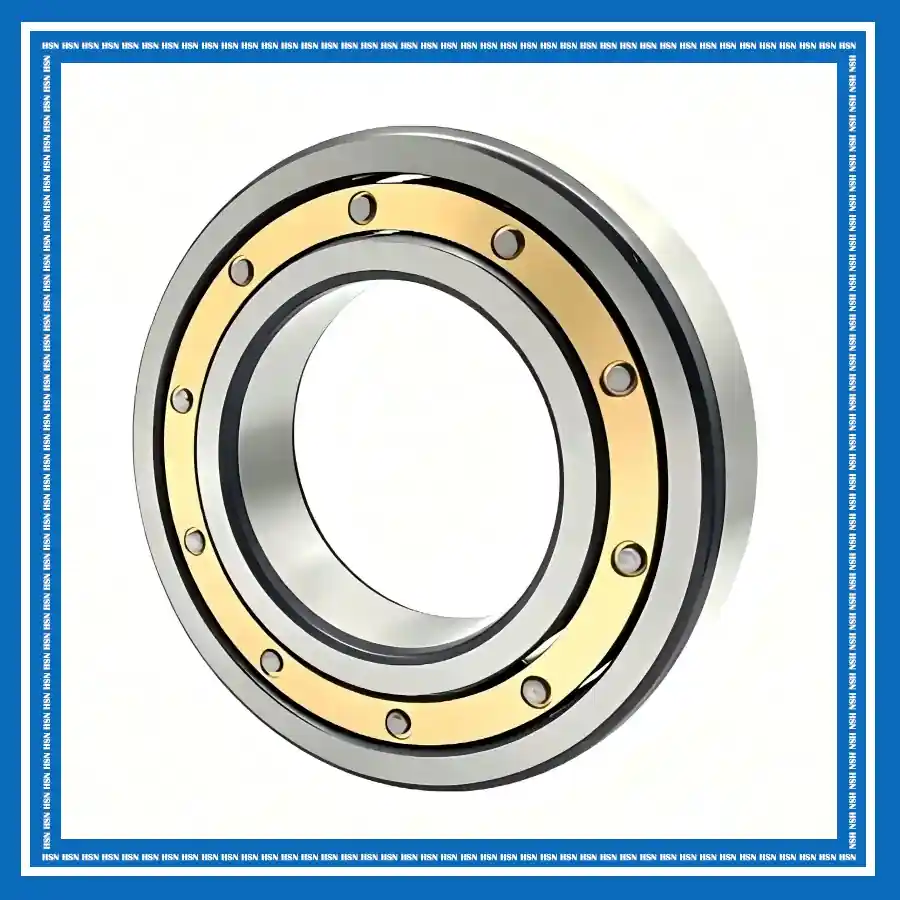

The 6418-M FAG deep groove ball bearing consists of an inner ring, an outer ring, balls, and a machined brass cage. The deep raceway design supports radial loads and axial loads in both directions while providing low friction and smooth operation. The robust brass cage provides excellent strength, wear resistance, and reliable ball guidance, helping maintain stable performance under demanding operating conditions.
The 6418-M bearing is widely used in metallurgical equipment, industrial motors, gear drives, pumps, rolling equipment, and other heavy industrial machinery. It is particularly suitable for applications requiring durable cage performance, reliable ball guidance, and stable operation under continuous or demanding conditions.
