7236-B-MP
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: 7236-B-MP
Category: Angular Contact Ball Bearings
1
Weight and Dimensions
Bore (d): 180 mm
Outer (D): 320 mm
Width (B): 52 mm
Weight: 17.503 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 280000 N
Basic Static Load Rating, Radial (C0r): 380000 N
Fatigue Load Limit, Radial (Cur): 12100 N
Limiting Speed (nG): 3100 rpm
Reference Speed (nϑr): 2290 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Angular Contact Ball Bearings
Product Description

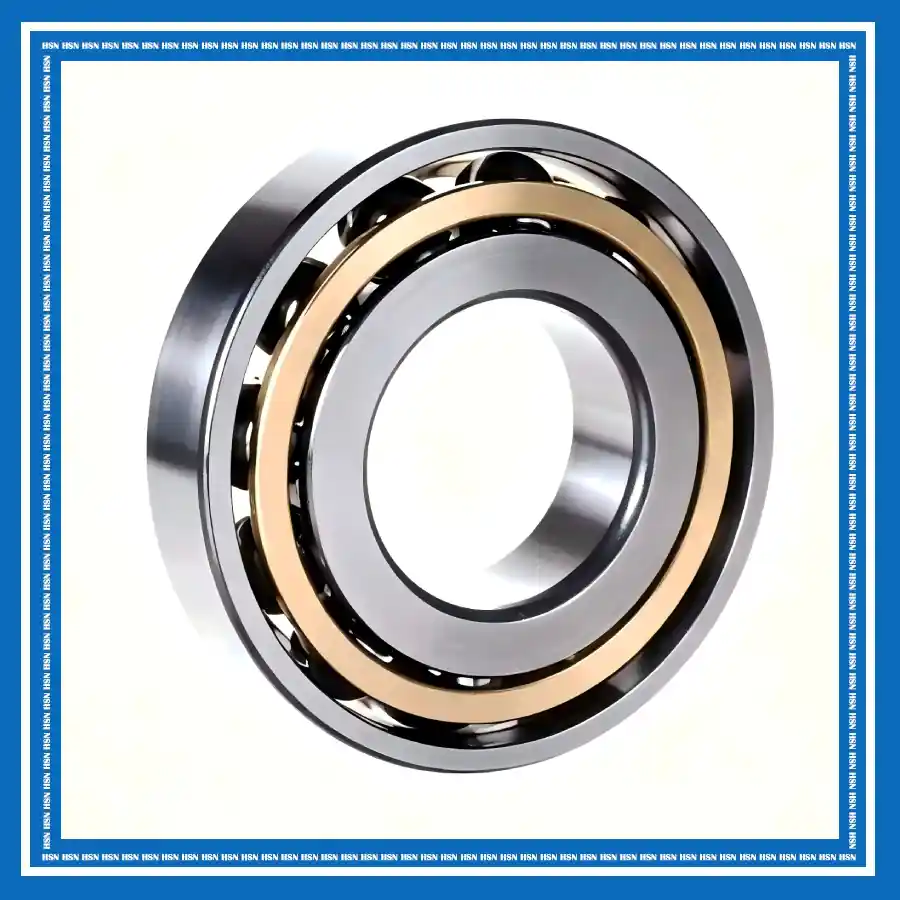

The 7236-B-MP FAG angular contact ball bearing consists of an inner ring, an outer ring, balls, and a solid brass cage. The 40° contact angle provides high axial load capacity while supporting combined radial and axial loads. The robust MP brass cage provides reliable ball guidance and stable performance under heavy loads and demanding operating conditions.
The 7236-B-MP bearing is well suited for heavy industrial gearboxes, large pumps, compressors, steel processing equipment, and heavy-duty transmission systems. It is particularly suitable for applications requiring high axial load capacity, combined load support, robust cage performance, and reliable operation under heavy-duty conditions.
