A5260
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5260
Category: Cylindrical Roller Bearings
1

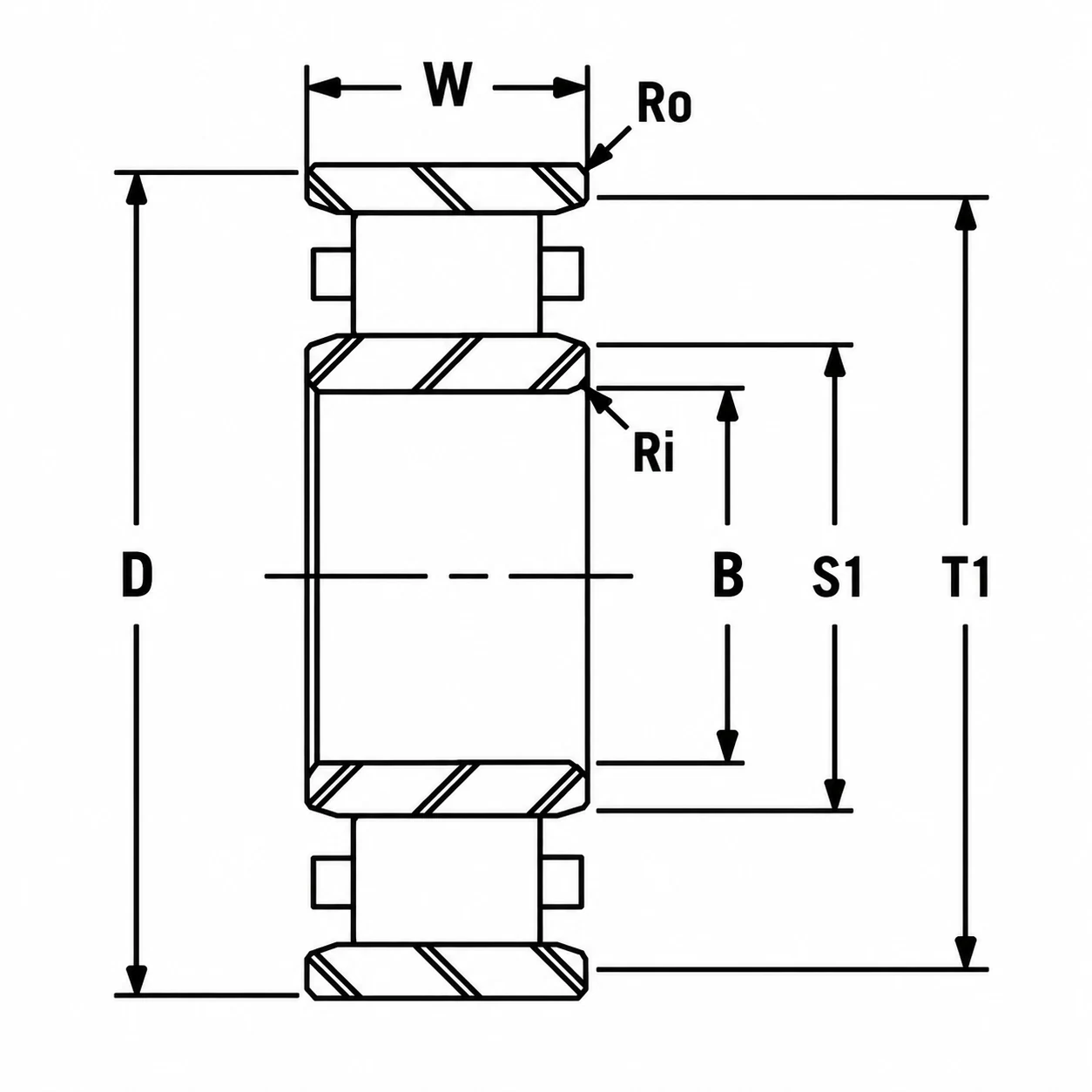

Weight and Dimensions
Bore (B): 300 mm 11.811 in
Outer Diameter (D): 540 mm 21.2598 in
Width (W): 177.8 mm 7 in
Inner Race O.D. A: 361.72 mm 14.241 in
Weight: 189 kg 417 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 3559 KN 800000 lbs
Static Capacity (Co) : 6094 KN 1370000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearing Guide
Product Description
The American Roller Bearing A5260 cylindrical roller bearing consists of a ribless inner ring, a ribless outer ring, and a cylindrical roller assembly separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft thermal expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance while ensuring reliable performance under demanding radial loads. It is suitable for demanding applications in the United States industrial market, including industrial gearboxes, electric motors, steel mill machinery, conveyors, paper machinery, and material handling systems requiring reliable radial support and axial displacement capability.
Need a Professional Bearing Replacement Solution?
Our technical team is ready to recommend the right replacement or custom bearing solution for your application.
