A5264
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: A5264
Category: Cylindrical Roller Bearings
1

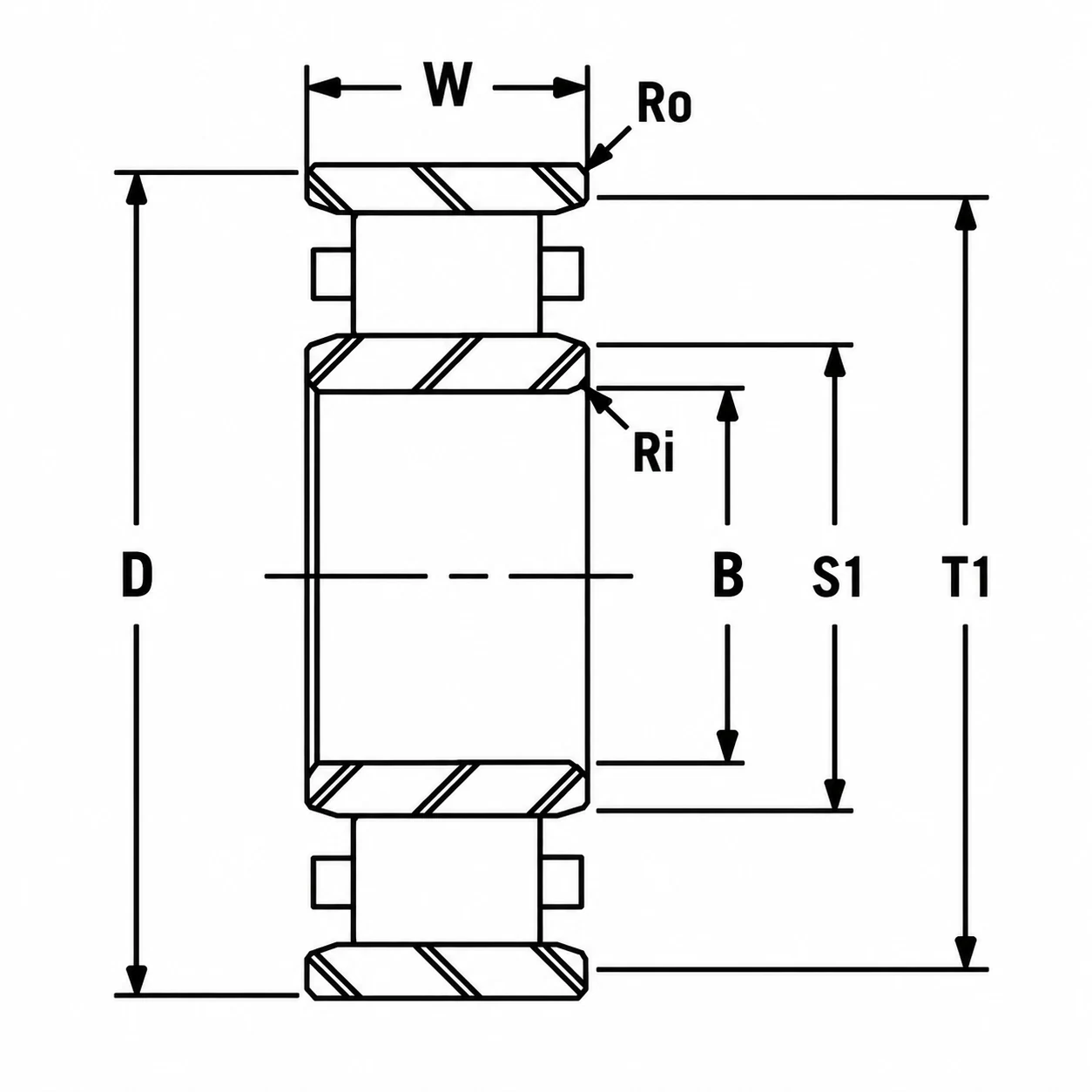

Weight and Dimensions
Bore (B): 320 mm 12.5984 in
Outer Diameter (D): 580 mm 22.8346 in
Width (W): 190.5 mm 7.5 in
Inner Race O.D. A: 388.75 mm 15.305 in
Weight: 115 kg 253.5 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 1846 KN 415000 lbs
Static Capacity (Co) : 2713 KN 610000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing A5264 cylindrical roller bearing consists of a ribless inner ring, ribless outer ring, and cylindrical roller assembly that is separable from both rings. Its cylindrical roller design provides high radial load capacity and rigidity, while the ribless ring configuration allows axial displacement to accommodate shaft expansion during operation. The fully separable construction facilitates mounting, inspection, and maintenance. It is suitable for industrial gearboxes, electric motors, conveyors, material handling equipment, steel mill machinery, paper machinery, and other industrial equipment requiring reliable radial support and axial displacement capability.
