ATW215H
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ ARB/ OEM
Bearing Number: ATW215H
Reference Number: TW99215
Inner Race Number: A30394H
Category: Cylindrical Roller Bearings
1

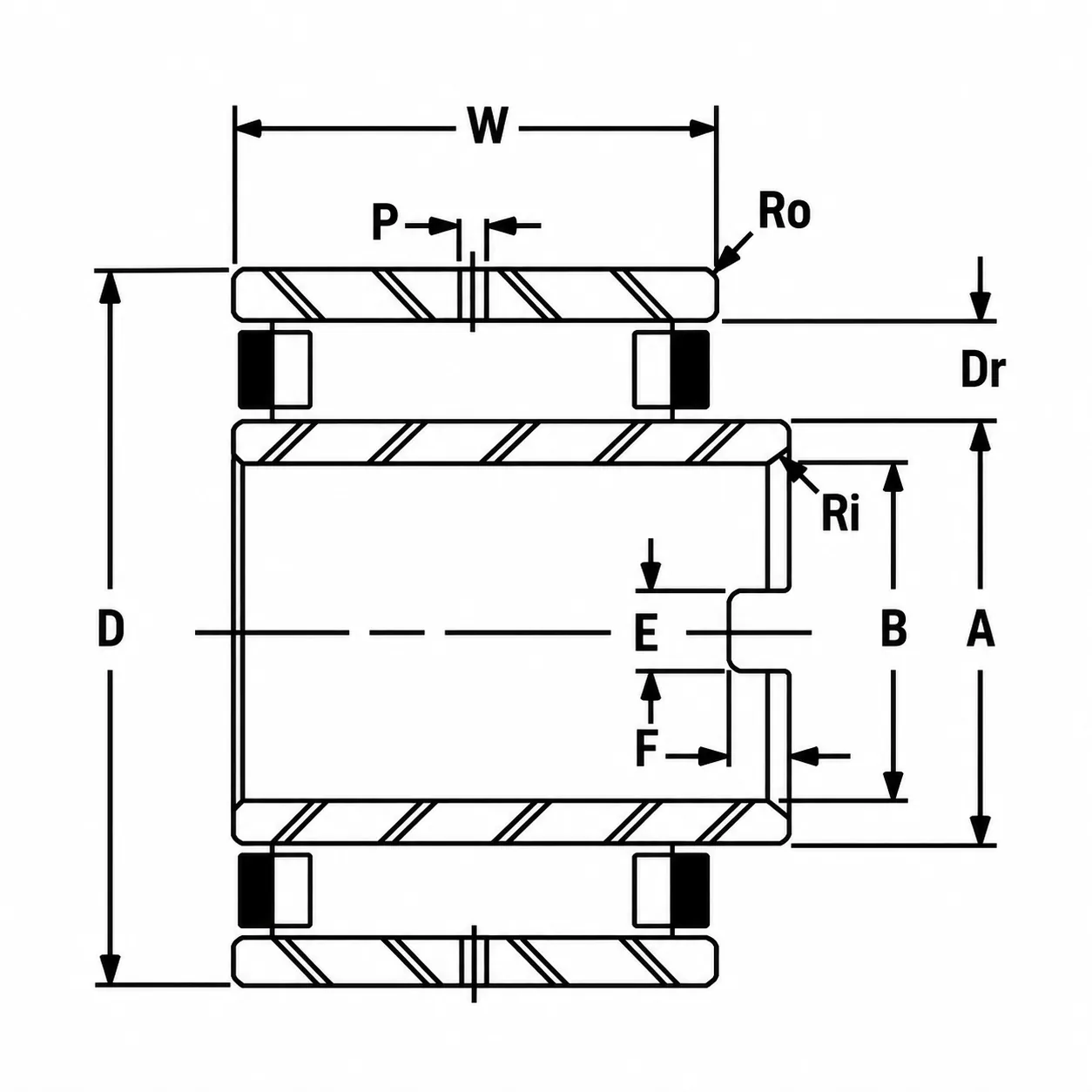

Weight and Dimensions
Bore (B): 76.200 mm 3.0000 in
Outer Diameter (D): 130.000 mm 5.1181 in
Outer Width (Wo): 66.675 mm 2.6250 in
Inner Width (Wi): 85.725 mm 3.3750 in
Inner Race O.D. A: 88.900 mm 3.5000 in
Weight: 4.40 kg 9.70 lbs
Data from ARB (medias)
Dynamic Capacity (C) : 214 KN 48000 lbs
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
ARB Cylindrical Roller Bearings Guide
Product Description
The American Roller Bearing ATW215H journal roller bearing consists of a removable inner ring, outer ring, and cylindrical roller assembly in a separable construction. Its robust cylindrical roller design provides high radial load capacity and rigidity, ensuring stable shaft support under moderate to heavy radial loads. The bearing incorporates an oil hole for effective lubrication and notches for specific mounting requirements, while the separable construction facilitates installation, inspection, and maintenance.
The bearing ATW215H is suitable for corrugating machinery, line shafts, table rolls, forging equipment, steel mill machinery, and other heavy-duty industrial equipment requiring high radial load capacity, reliable shaft support, and durable operation.
