EE921150D / 921875 / 921876D
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: EE921150D / 921875 / 921876D
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 292.100 mm 11.5000 in
Outside Diameter (D): 476.250 mm 18.7500 in
Width Over Cups (T): 292.100 mm 11.5000 in
Width Over Cones (B): 296.047 mm 11.6554 in
Weight: 198 KG 436 lbs
Data from Timken (medias)
Dynamic Radial Load Rating (C1-4 row): 5260 KN 1182000 lbf
Dynamic Radial Load Rating (C90): 391 KN 88000 lbf
Dynamic Radial Load Rating (C90-4 row): 1362 KN 306000 lbf
Dynamic Axial Load Rating (Ca90): 196 KN 44000 lbf
e Factor: 0.29
Y1 Factor: 2.31
Y2 Factor: 3.44
K Factor: 2.00
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product Description

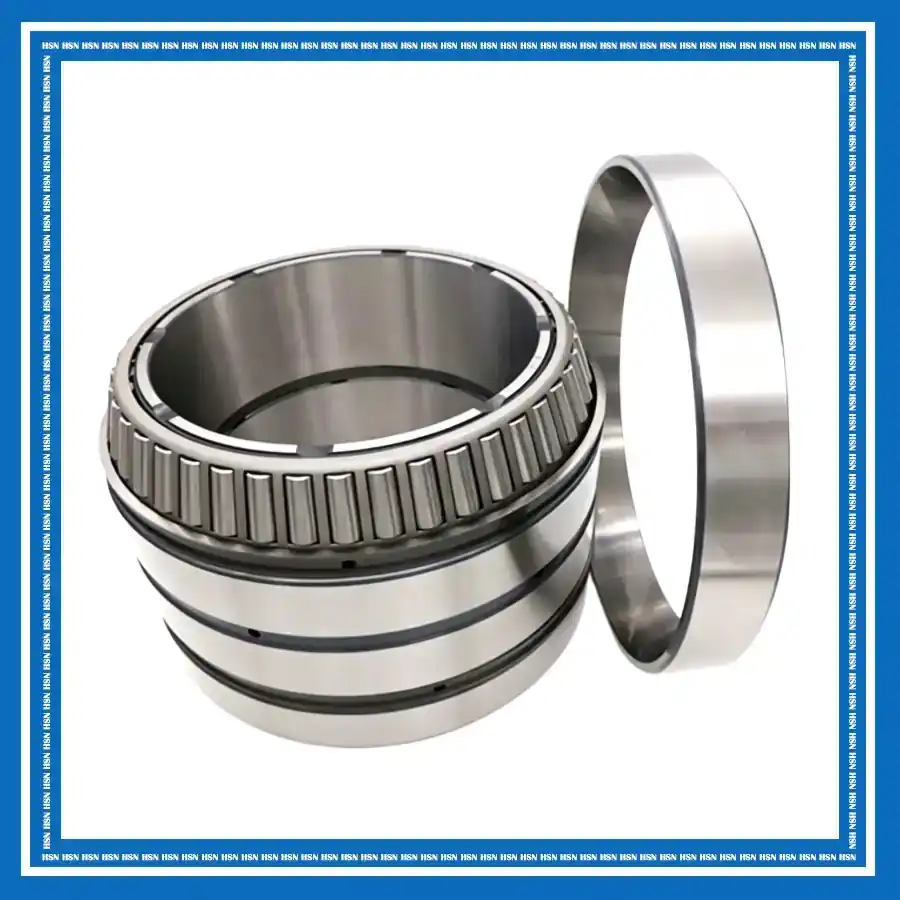

The Timken EE921150D / 921875 / 921876D four-row tapered roller bearing features a TQO configuration consisting of two double cones without face slots, four rows of tapered rollers and cages, two single cups, one double cup, one cone spacer, and two cup spacers. This design provides high radial and axial load capacity, excellent structural rigidity, and reliable stability under heavy combined loads. The robust four-row arrangement helps distribute rolling forces evenly, while the cone and cup spacers maintain proper axial spacing and support stable bearing operation.
The Timken EE921150D / 921875 / 921876D bearing is engineered for rolling mill roll-neck applications, including work rolls, intermediate rolls, and backup rolls in flat product mills, as well as work rolls in long product mills. Its robust four-row construction supports heavy rolling loads, stable roll positioning, and consistent performance under demanding operating conditions. HSN provides replacement bearing solutions for United States steel mills, OEM equipment manufacturers, and industrial distributors seeking alternatives to Timken EE921150D / 921875 / 921876D bearings.
