JXR652050
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: JXR652050
Category: Tapered Roller Thrust Bearings
1
Weight and Dimensions
Bore (d): 310 mm 12.2047 in
Outside Diameter (D): 425 mm 16.7323 in
Width (T): 45 mm 1.7717 in
Max Fillet (R): 2.5 mm 0.1 in
Weight: 25 kg 55 lbs
Data from Timken (medias)
K Factor: 0.46
Radial Rating: 82 KN 18500 lbf
Axial Rating: 102 KN 23000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description

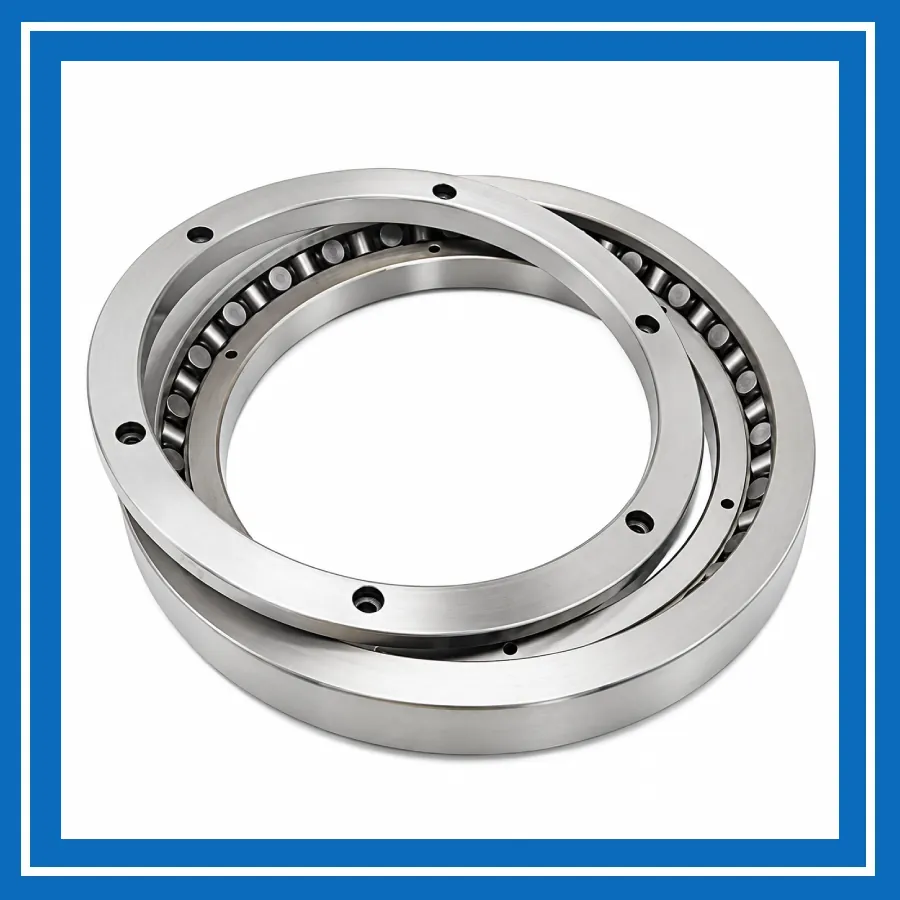

The TIMKEN JXR652050 crossed tapered roller thrust bearing consists of precision-machined inner and outer races with two sets of tapered rollers arranged alternately at 90-degree angles. Its compact crossed roller configuration provides a wide effective bearing spread, delivering high rigidity, precise rotational accuracy, low starting torque, and excellent resistance to overturning moments. The design also supports combined radial and axial loads while maintaining stable rotation and minimizing space requirements. Ideal for precision rotating equipment, the bearing is suitable for vertical boring mills, grinding machines, machine tool rotary tables, and other pivot or pedestal applications in the United States industrial market.
