K11590-11520
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: K11590-11520
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 15.875 mm
Outer (D): 42.863 mm
Width, Inner Ring (B): 14.287 mm
Width, Outer Ring (C): 9.525 mm
Width, Total (T): 14.288 mm
Weight: 0.104 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 17900 N
Basic Static Load Rating, Radial (C0r): 18000 N
Fatigue Load Limit, Radial (Cur): 1890 N
Limiting Speed (nG): 18800 r/min
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Tapered Roller Bearings Guide
Product Description

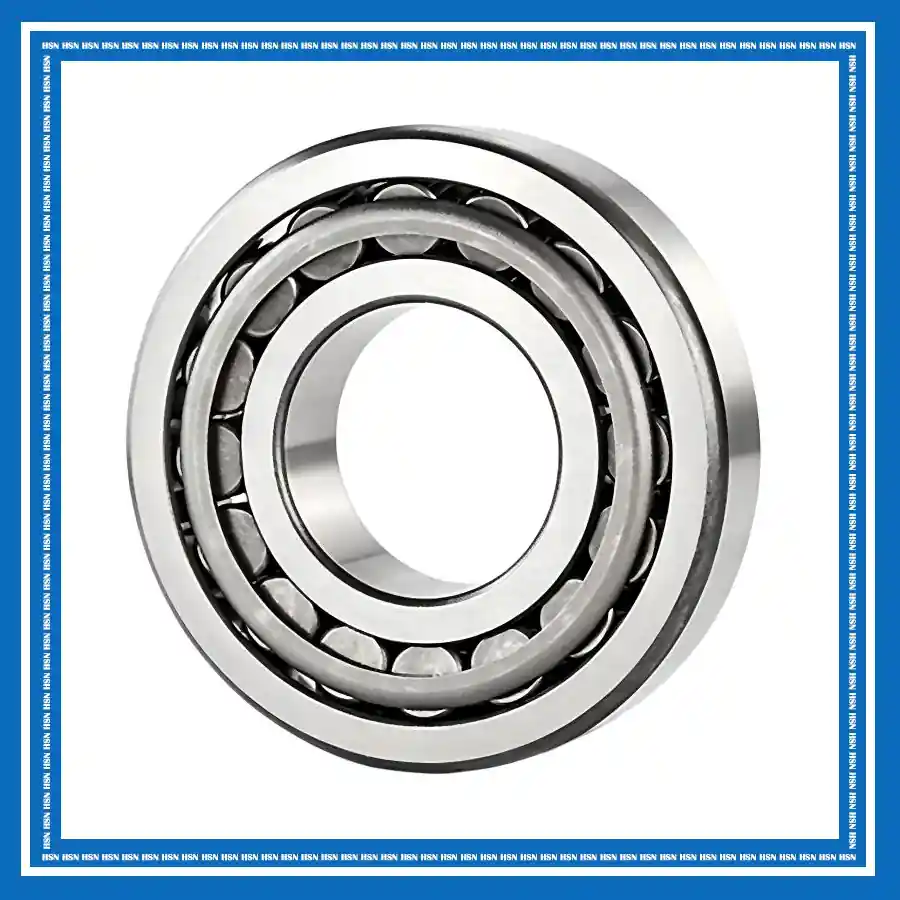

The K11590-11520 FAG single row tapered roller bearing consists of an inner ring, outer ring, tapered rollers, and a cage. Its tapered roller and raceway geometry provides high radial load capacity, axial load capability in one direction, and high rigidity. In addition, the design distributes combined loads effectively and supports stable operation under changing load conditions.
The K11590-11520 bearing is suitable for the automotive industry, agricultural machinery, industrial transmissions, construction machinery, and material handling. Its combined radial and axial load capacity provides dependable support under variable loads. Therefore, it is well suited to applications requiring stable performance and durable operation.
