LP-1316-U
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: LP-1316-U
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 80 mm 3.1496 in
Outside Diameter (D): 170 mm 6.6929 in
Width (W): 39.0 mm 1.5354 in
Flange O.D Inner (Fi): 110.7 mm 4.3583 in
Flange O.D Inner (Ri): 101.6 mm 4.0000 in
Flange ID Outer (Fo): 139.2 mm 5.4803 in
Flange ID Outer (Ri): 147.3 mm 5.7992 in
Data from Rollway (medias)
Dynamic Capacity (C): 229484 N 51590 lbf
Static Capacity (Ca): 260354 N 58530 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Cylindrical Roller Bearings Guide
Product Description

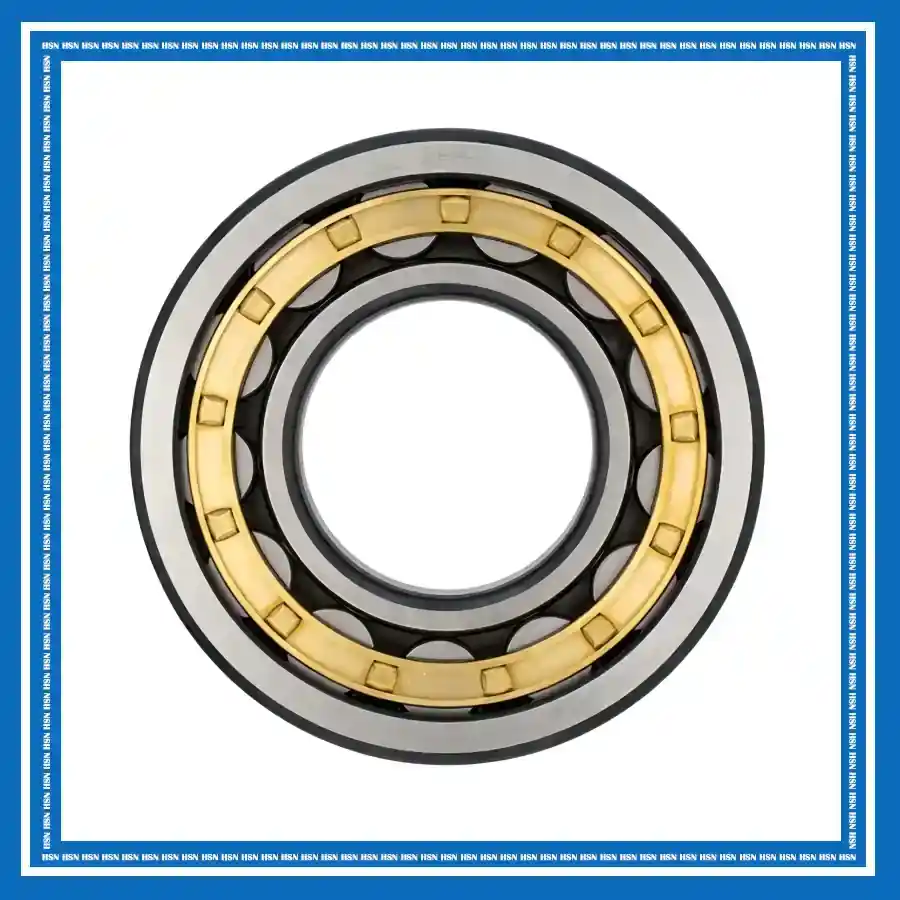

The Rollway LP-1316-U Cylindrical Radial Roller Bearing features a separable two-piece inner ring with a removable flange plate, a double-flanged outer ring, crowned cylindrical rollers, and a precision-engineered retainer. Manufactured from through-hardened bearing-grade steel, its precision-ground raceways and crowned rollers provide high radial load capacity while reducing edge stresses. The four-flange design ensures axial location in both directions and supports light axial loads, offering stable performance under demanding operating conditions. The LP-1316-U bearing is suitable for industrial gearboxes, pumps, and heavy-duty machinery requiring combined radial support and axial positioning, meeting the demanding requirements of the United States industrial market.
