LSL192316
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: LSL192316
Category: Cylindrical Roller Bearings
1

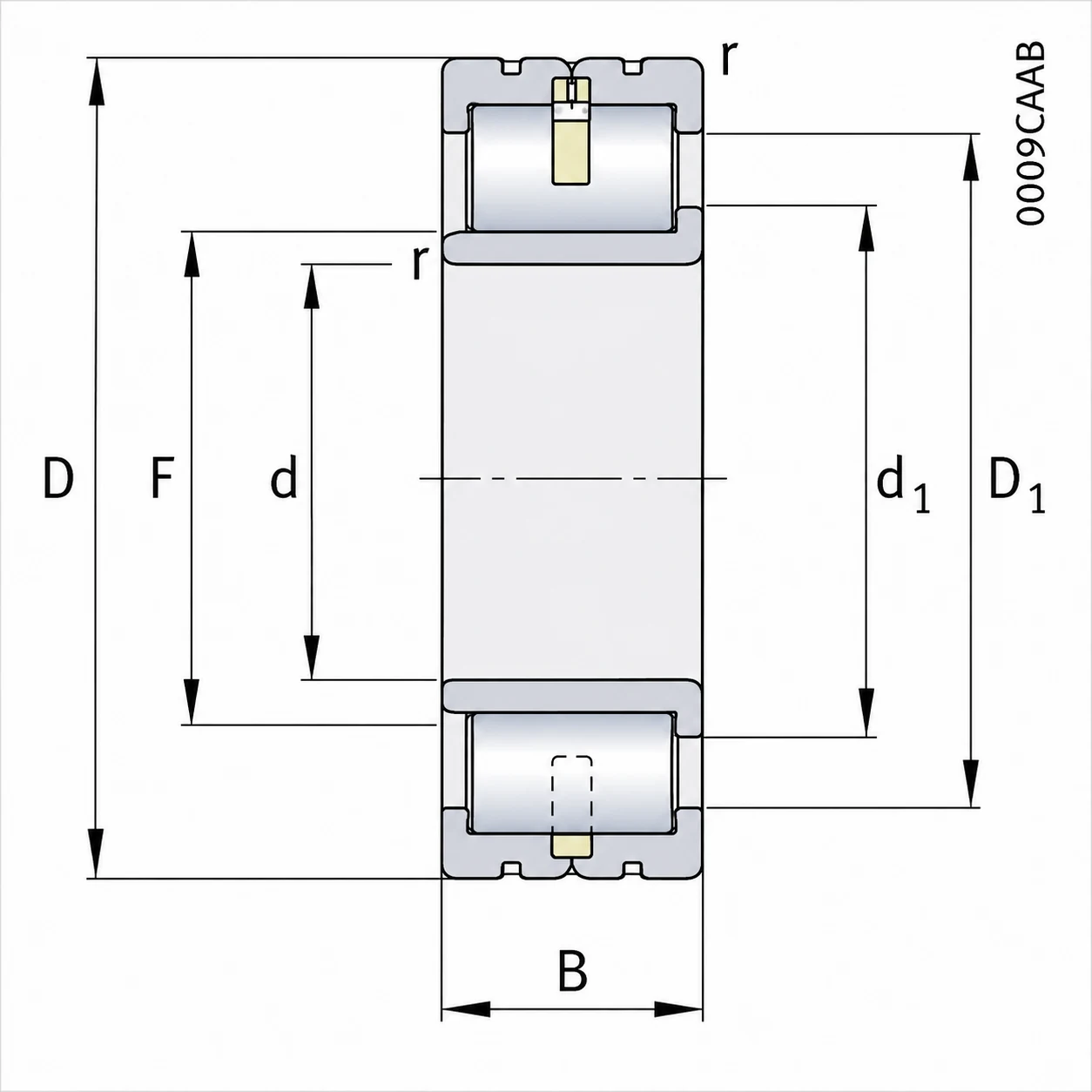

Weight and Dimensions
Bore (d): 80 mm
Outer (D): 170 mm
Width (B): 58 mm
Weight: 6.1 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 420000 N
Basic Static Load Rating, Radial (C0r): 495000 N
Fatigue Load Limit, Radial (Cur): 75000 N
Limiting Speed (nG): 8500 rpm
Reference Speed (nϑr): 4600 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The LSL192316 FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass disc cage. The LSL design accommodates a high number of rollers, providing high radial load capacity with reduced friction. The disc cage also supports reliable roller guidance and stable operation under demanding loads.
The LSL192316 is a semi-locating bearing suitable for industrial gearboxes, large transmission units, paper machinery, and heavy process equipment. Its high radial load capacity and low-friction design support continuous operation, while the bearing can accommodate axial loads in one direction.
