LSL192324-TB-XL
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: LSL192324-TB-XL
Category: Cylindrical Roller Bearings
1

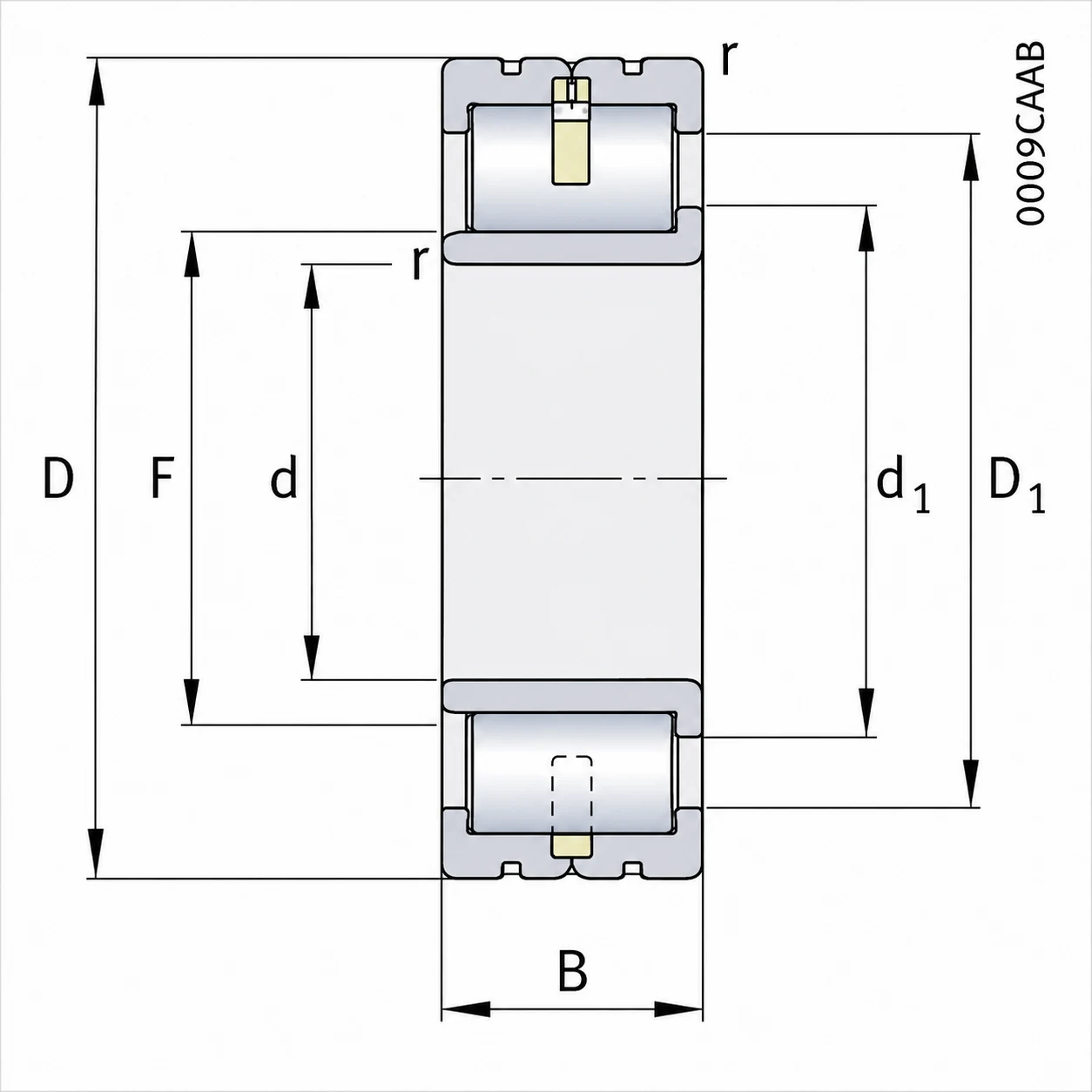

Weight and Dimensions
Bore (d): 120 mm
Outer (D): 260 mm
Width (B): 86 mm
Weight: 22 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 1060000 N
Basic Static Load Rating, Radial (C0r): 1140000 N
Fatigue Load Limit, Radial (Cur): 186000 N
Limiting Speed (nG): 5300 rpm
Reference Speed (nϑr): 2650 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The LSL192324-TB-XL FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass disc cage. The LSL design combines high radial load capacity with low friction. Meanwhile, the TB design optimizes roller-to-rib contact for improved axial load capacity and reduced friction. X-life technology further improves operating performance and service life.
The LSL192324-TB-XL is a semi-locating bearing suitable for wind turbine gearboxes, large industrial gear units, power transmission systems, and heavy-duty drives. Its high load capacity, optimized rib contact, and low-friction operation provide reliable support where continuous loads and long operating periods are required.
