Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: LSL192340-TB
Category: Cylindrical Roller Bearings
1

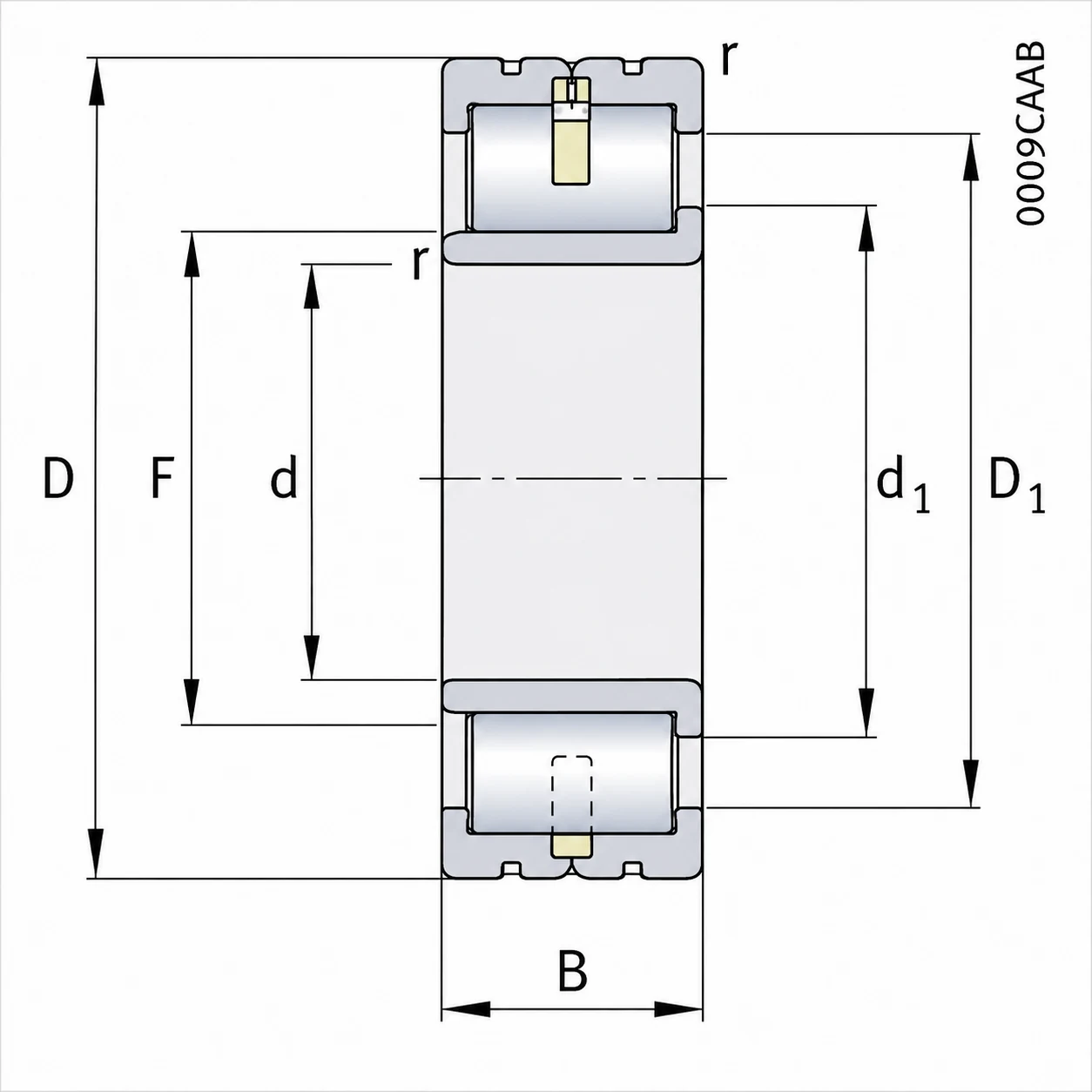

Weight and Dimensions
Bore (d): 200 mm
Outer (D): 420 mm
Width (B): 138 mm
Weight: 89.3 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 2340000 N
Basic Static Load Rating, Radial (C0r): 3050000 N
Fatigue Load Limit, Radial (Cur): 320000 N
Limiting Speed (nG): 3200 rpm
Reference Speed (nϑr): 1420 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description
The LSL192340-TB FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass disc cage. The LSL design provides high radial load capacity with reduced friction, while the TB design optimizes roller-to-rib contact. This design improves axial load capacity and reduces friction under axial loads.
The LSL192340-TB is a semi-locating bearing suitable for steel processing machinery, rolling mill auxiliary equipment, large reducers, and heavy production lines. Its high radial load capacity and optimized rib contact provide reliable shaft support under heavy loads and continuous industrial operation.
