Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: LSL192360-TB
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 300 mm
Outer (D): 620 mm
Width (B): 185 mm
Weight: 253 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 4150000 N
Basic Static Load Rating, Radial (C0r): 5500000 N
Fatigue Load Limit, Radial (Cur): 520000 N
Limiting Speed (nG): 2130 rpm
Reference Speed (nϑr): 890 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

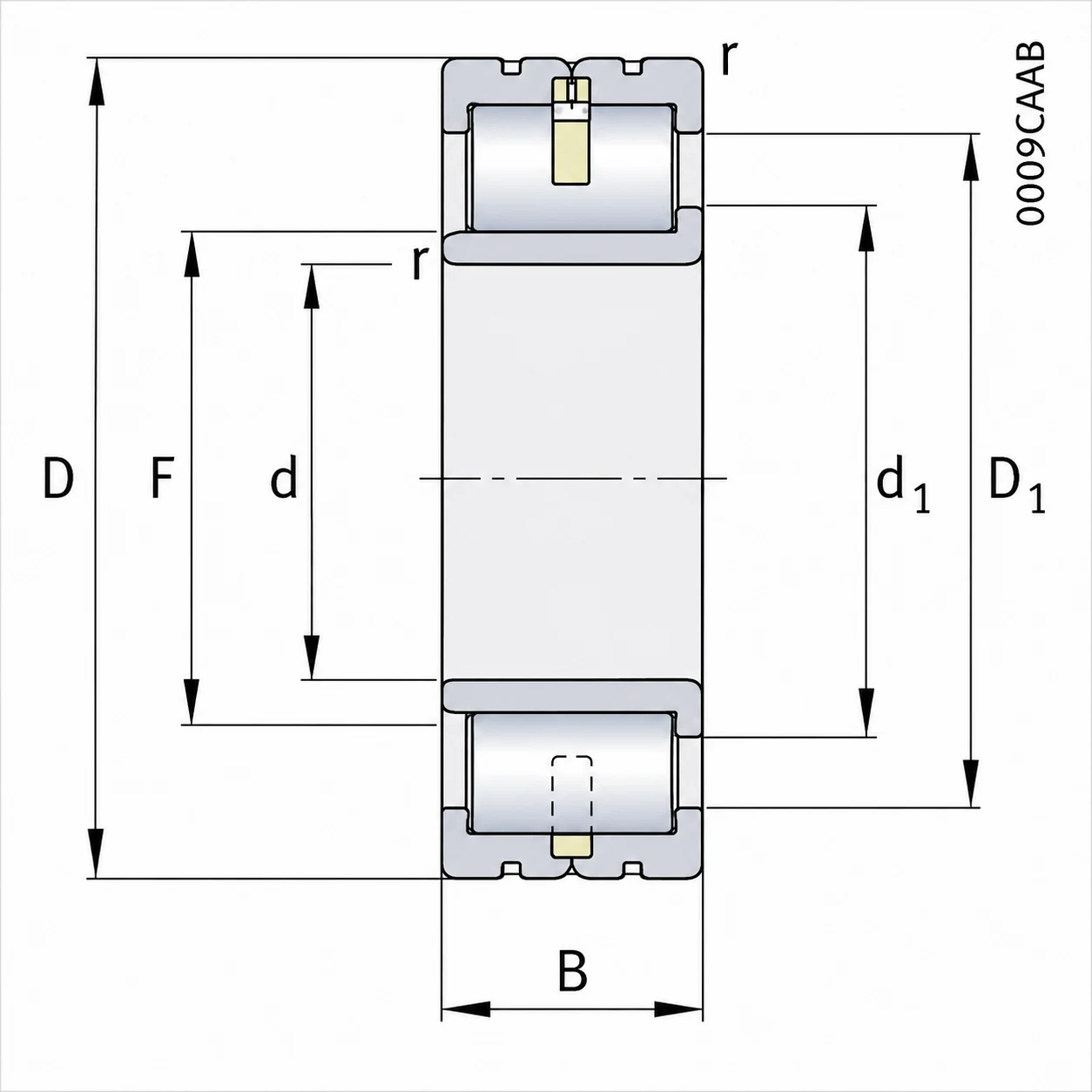

The LSL192360-TB FAG single row cylindrical roller bearing consists of an inner ring, outer ring, cylindrical rollers, and a brass disc cage. The LSL design provides high radial load capacity with reduced friction, while the TB design optimizes roller-to-rib contact. This design improves axial load capacity and reduces friction under axial loads.
The LSL192360-TB is a semi-locating bearing suitable for steel processing machinery, rolling mill auxiliary equipment, large reducers, and heavy production lines. Its high radial load capacity and optimized rib contact provide reliable shaft support under heavy loads and continuous industrial operation.
