M-4153-C
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ Timken/ OEM
Bearing Number: M-4153-C
Category: Tapered Roller Thrust Bearings
1

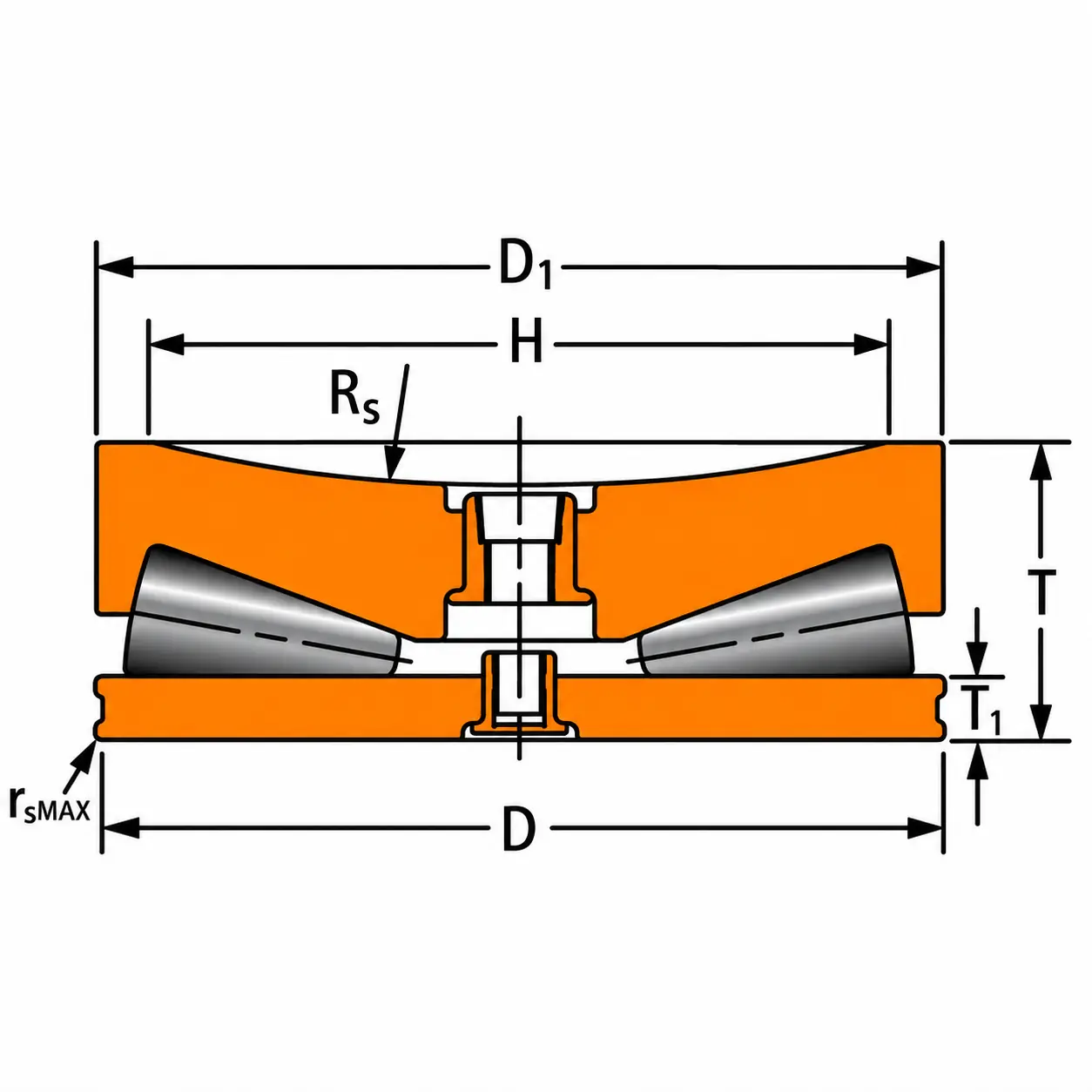

Weight and Dimensions
Large O.D.D: 551.688 mm 21.72 in
Small O.D.D1 (mm): 539.75 mm 21.25 in
Bearing Width (T): 158.369 mm 6.235 in
Flat Race Width (T1): 25.4 mm 1 in
Contact Diameter (H): 406.4 mm 16 in
Spherical Radius (Rs): 635 mm 25 in
Weight: 294.8 kg 650 lbs
Data from Timken (medias)
Static Load Rating CaO: 35900 KN 8070000 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Thrust Bearings
Product Description
The TIMKEN M-4153-C screwdown tapered roller thrust bearing consists of two specially profiled thrust races and a full complement of tapered rollers without a cage, featuring a concave race profile designed for rolling mill screwdown systems. Its heavy-duty, full complement construction provides high axial load capacity and stable support under extreme thrust loads, while the specially profiled raceway accommodates the mounting requirements of screwdown mechanisms. Specifically designed for rolling mill screwdown applications, the bearing is suitable for steel rolling mills and metal processing equipment in the United States industrial market, where reliable axial support and durability are essential.
