Specifications
Availability: 100 PCS
Brand: HSN/ Rollway/ OEM
Bearing Number: ML-332
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (B): 160 mm 6.2992 in
Outside Diameter (D): 340 mm 13.3858 in
Width (W): 68.0 mm 2.6772 in
Flange O.D Inner (Fi): 220.5 mm 8.6811 in
Flange O.D Inner (Ri): 203.2 mm 8.0000 in
Flange ID Outer (Fo): 283.7 mm 11.1693 in
Flange ID Outer (Ri): 298.5 mm 11.7520 in
Data from Rollway (medias)
Dynamic Capacity (C): 809843 N 182060 lbf
Static Capacity (Ca): 988395 N 222200 lbf
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Rollway Cylindrical Roller Bearings Guide
Product Description

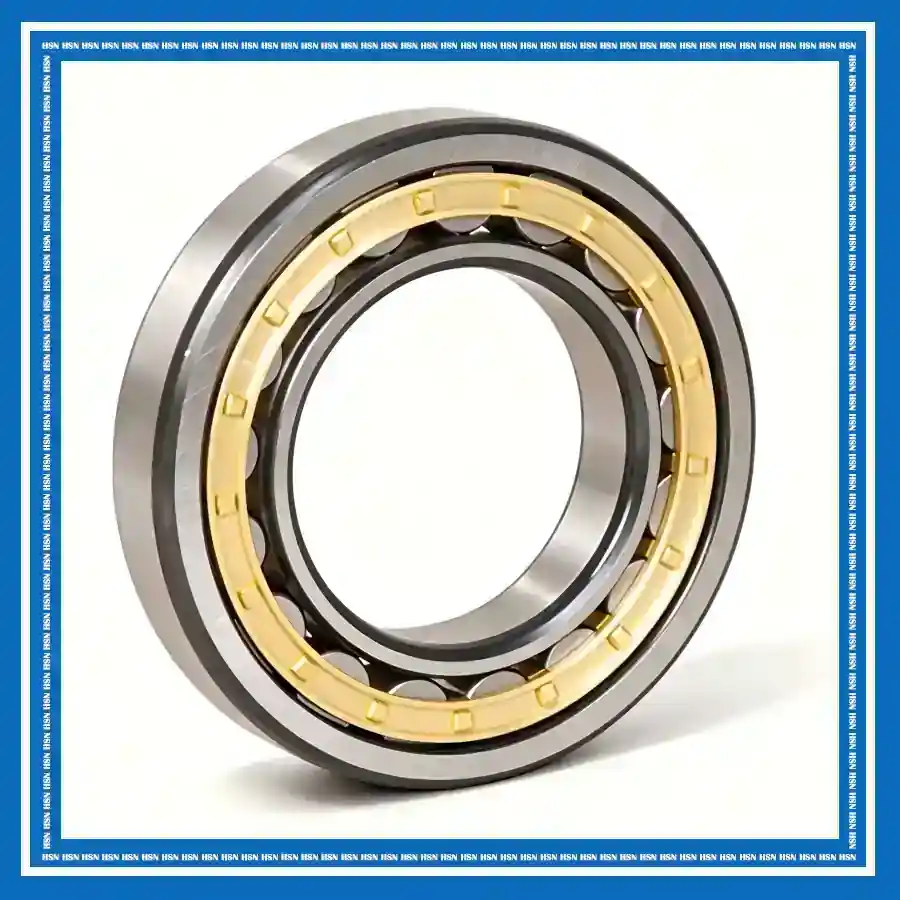

The Rollway ML-332 Cylindrical Radial Roller Bearing features a separable single-flanged outer ring, a double-flanged inner ring, crowned cylindrical rollers, and a precision-engineered retainer. Manufactured from through-hardened bearing-grade steel, its precision-ground raceways and crowned rollers provide high radial load capacity while helping reduce edge stresses. The design allows axial displacement in one direction while providing axial location and supporting light thrust loads in the opposite direction. The ML-332 bearing is suitable for industrial gearboxes, pumps, and heavy-duty machinery requiring reliable radial support and controlled axial movement, meeting the demanding requirements of the United States industrial market.
