N232-E-XL-M1
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: N232-E-XL-M1
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 160 mm
Outer (D): 290 mm
Width (B): 48 mm
Weight: 14.7 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 590000 N
Basic Static Load Rating, Radial (C0r): 670000 N
Fatigue Load Limit, Radial (Cur): 101000 N
Limiting Speed (nG): 3650 rpm
Reference Speed (nϑr): 2160 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

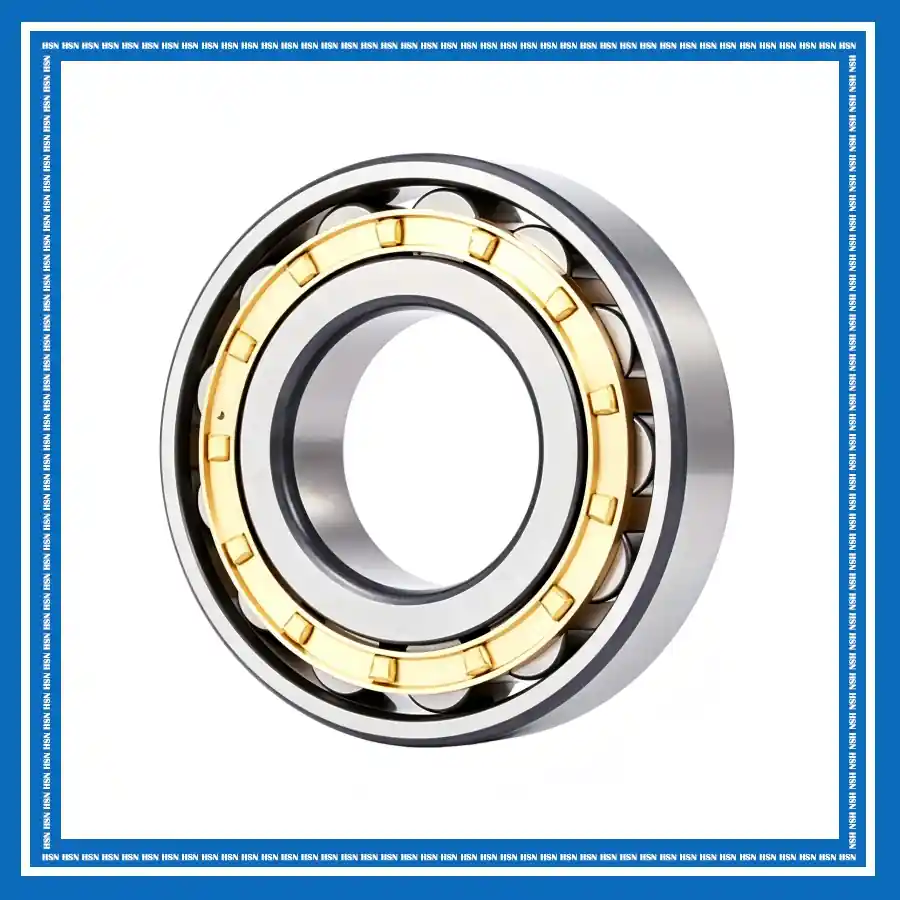

The N232-E-XL-M1 FAG single row cylindrical roller bearing consists of a solid inner ring with two ribs, a ribless outer ring, cylindrical rollers, and a roller-guided two-piece brass cage. The E design increases load capacity, while X-life improves performance and service life. The robust M1 brass cage provides reliable roller guidance and stable operation under high radial loads.
The N232-E-XL-M1 bearing is widely used in industrial gearboxes, electric motors, generators, and heavy transmission equipment. Its N design allows axial displacement between the shaft and housing within the bearing, making it suitable for non-locating bearing arrangements exposed to thermal shaft expansion.
