N307-E-XL-TVP2
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ FAG/ OEM
Bearing Number: N307-E-XL-TVP2
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 35 mm
Outer (D): 80 mm
Width (B): 21 mm
Weight: 0.486 kg
Data from Schaeffler (medias)
Basic Dynamic Load Rating, Radial Cr: 76000 N
Basic Static Load Rating, Radial (C0r): 63000 N
Fatigue Load Limit, Radial (Cur): 10600 N
Limiting Speed (nG): 10900 rpm
Reference Speed (nϑr): 7900 rpm
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
FAG Cylindrical Bearing Types Model Code Guide
Product Description

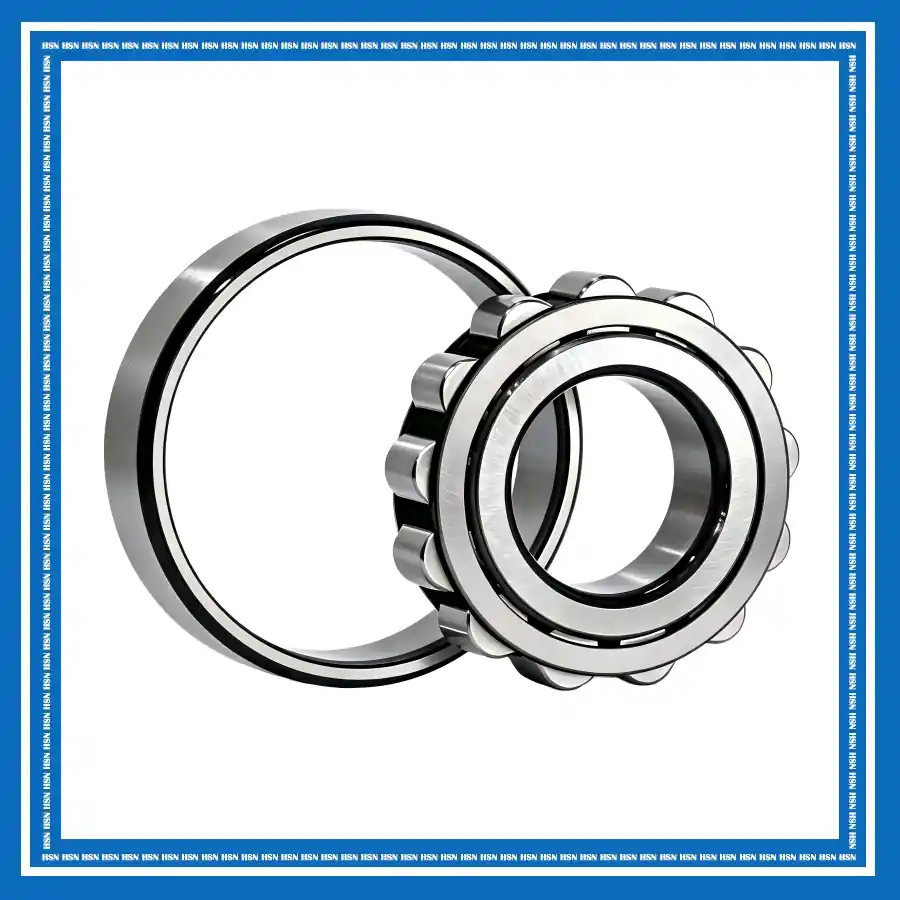

The N307-E-XL-TVP2 FAG single row cylindrical roller bearing consists of an inner ring with two ribs, a ribless outer ring, cylindrical rollers, and a solid window cage made from polyamide PA66. The E design increases radial load capacity, while X-life improves bearing life and performance. The TVP2 cage provides reliable roller guidance with low weight and smooth running.
The N307-E-XL-TVP2 bearing is widely used in gearboxes, industrial drive units, electric powertrains, and general machinery. The N design allows axial displacement within the bearing, making it suitable for non-locating positions where thermal shaft expansion must be accommodated. Schaeffler also uses the N design concept in high-speed electric powertrain transmission applications.
