NA580SW / 572D
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 pcs
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NA580SW / 572D
Category: Tapered Roller Bearings
1
Weight and Dimensions
Bore (d): 82.550 mm 3.2500 in
Outer (D): 139.992 mm 5.5115 in
Width (T): 92.075 mm 3.6250 in
Width (C): 66.675 mm 2.6250 in
Weight: 4.87 kg
Data from Timken (medias)
Dynamic Radial Load Rating – 1M Revs (C1) : 360000 N
Dynamic Radial Load Rating – 90M Revs (C90) : 53600 N
Dynamic Radial Load Rating 2-Row – 90M Revs (C90-2row): 93400 N
Dynamic Axial Rating – 90M Revs (Ca90): 37100 N
e Factor: 0.4
K Factor: 1.45
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Tapered Roller Bearings Guide
Product Description

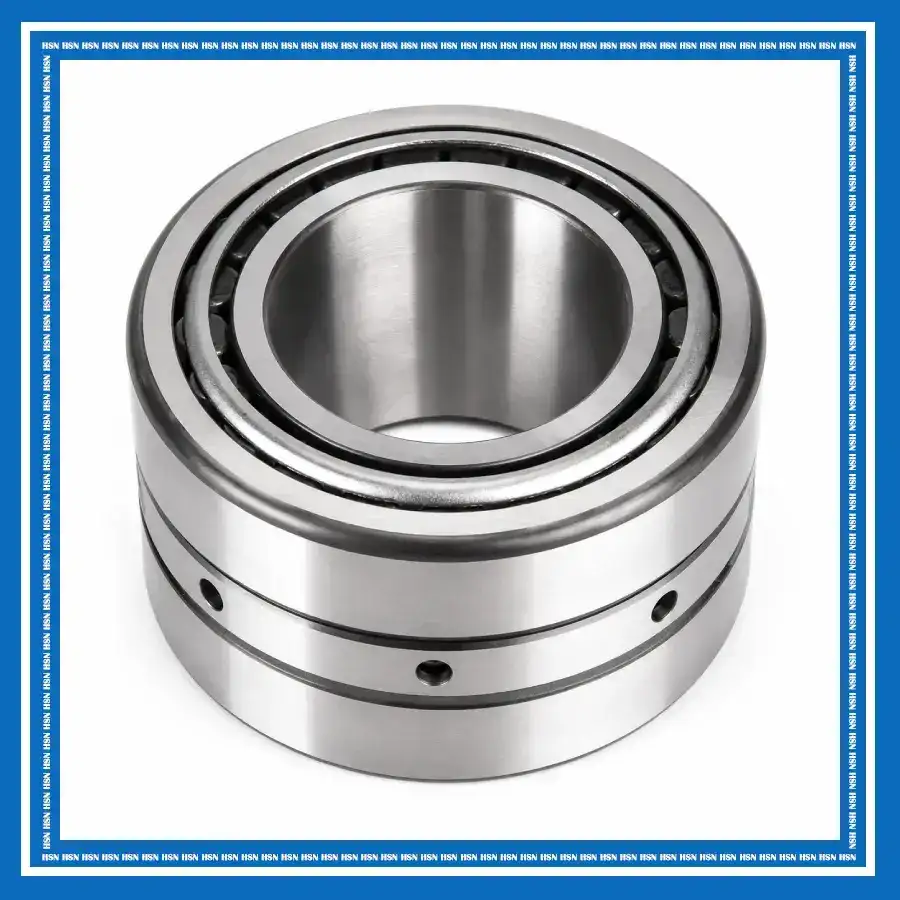

The NA580SW / 572D TNASWE tapered roller bearing features a double-row tapered roller design with two single inner rings and a double outer ring. The extended inner ring face design provides direct inner-ring contact, eliminating the need for a separate cone spacer and creating a compact bearing configuration. The inner ring lubrication slots improve lubricant flow, while the built-in clearance design ensures stable load distribution, reliable performance, and consistent operation for fixed and floating bearing applications.
The NA580SW / 572D TNASWE bearing is widely used in industrial equipment, heavy-duty gearboxes, construction machinery, mining equipment, and other applications where reliable load support, easy installation, and long service life are required.
