NCF18/750V
-
All Data Sourced from Official Brands
-
Brand Alternative Bearings with Identical Specifications
-
Customized Bearing Solutions Based on Parameters
-
Fast Quotation Response
-
OEM and Flexible Order Quantities Supported
Specifications
Availability: 100 PCS
Brand: HSN/ TIMKEN/ OEM
Bearing Number: NCF18/750V
Category: Cylindrical Roller Bearings
1
Weight and Dimensions
Bore (d): 750.000 mm 29.5276 in
Outer (D): 920.000 mm 36.2205 in
Width (B): 78.000 mm 3.0709 in
DUR/DOR (F/E): 878.000 mm 34.5669 in
Weight: 105.10 kg
Data from Timken (medias)
Dynamic Radial Load Rating (C1) : 2080 KN
Static Radial Load Rating (C0): 4600 KN
Thermal Reference Speed – Oil: 160 RPM
Thermal Reference Speed – Grease: 140 RPM
Product Properties
Precision: P0, P6, P5
Hardness: HRC58-62
Ring Material: GCr15, GCr15SiMn, 100CrMnSi6-4, etc.
Cage Material: Brass, Steel
Certificate: ISO9001:2015
1
Downloads & Links
Timken Cylindrical Roller Bearings Guide
Product Description

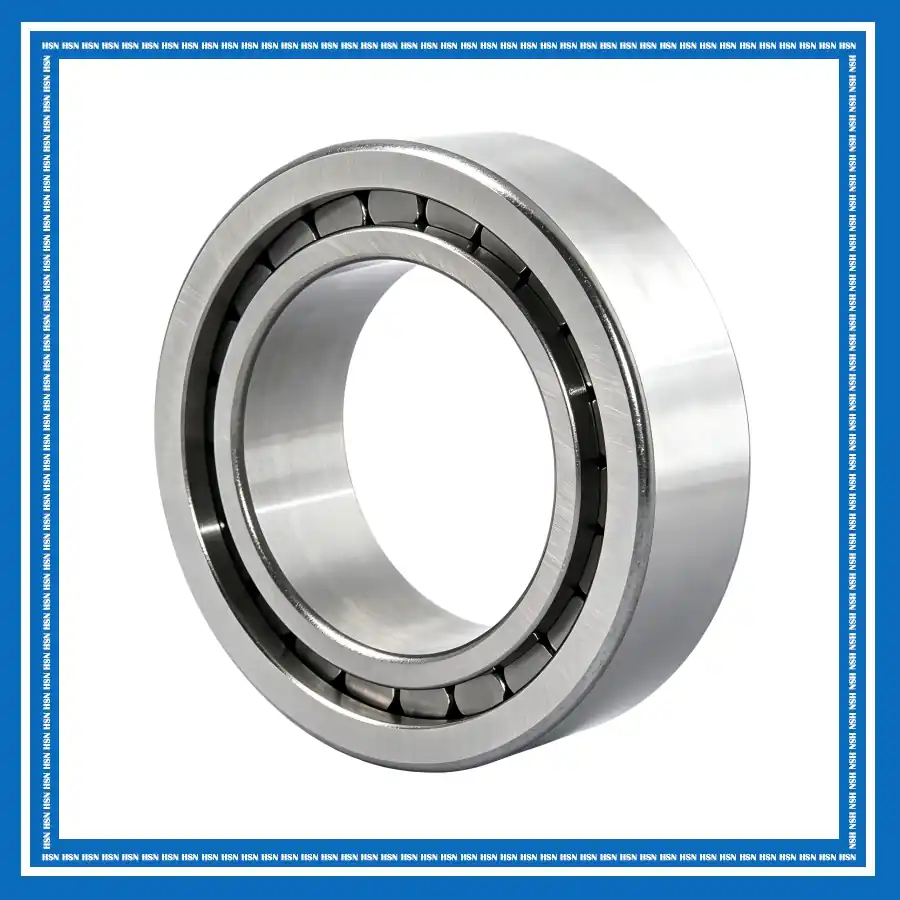

The NCF18/750V Timken full-complement cylindrical roller bearing consists of an inner ring, an outer ring, and a full complement of cylindrical rollers without a cage. The increased number of rollers provides very high radial load capacity and excellent rigidity, making the bearing well suited for heavy-duty applications. The NCF design also allows a certain degree of axial displacement within the bearing while maintaining stable performance under high radial loads and continuous operating conditions.
The NCF18/750V bearing is widely used in industrial gearboxes, rolling mills, mining equipment, heavy-duty drive systems, lifting equipment, and other industrial machinery. It is particularly suitable for applications requiring very high radial load capacity, high rigidity, and reliable performance under heavy and continuous operating conditions.
